High Screening Efficiency sand washer in mining
USD $1,000 - $10,000
/ Set
1 Set(Min.Order)
- SHANGHAI
- T/T
You May Like
-
Reliable operation OEM belt conveyor for stone
-
High Performance and Quality stone belt conveyor (Factory Direct Sales)
-
double spiral classifier machine price for mineral sand washing processing
-
China competitive Spiral sand washing machine from China manufacturer for sale
-
Large capacity belt conveyor widely used in mining/chemistry
-
Industrial granule conveying equipment belt conveyor for sale
Product Details
| Condition | New | Motor Type | AC Motor | |
| Power(W) | 20-40(KW) | Capacity(t/h) | 50-500 | |
| Place of Origin | Shanghai, China | Brand Name | TRUSTON | |
| Model Number | spiral classifier sand washing machine | Dimension(L*W*H) | see the specifications | |
| Weight | see the specifications | Certification | ISO. CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
spiral sand washing machine for sale1.single spiral classifier
2.double helixes spiral classifier
3.high weir type
4.CE
High Screening Efficiency Sand Washer in Mining, Spiral Classifier Sand Washing
1. Spiral Classifier Sand WasherSpecifications
| Model | Screw Diameter(mm) | Selected Size(mm) | Capacity(t/h) | Power(kw) | Weight(kg) |
| XL-915 | 915 | <10 | 100 | 11 | 6585 |
| 2XL-915 | 915 | <10 | 200 | 11×2 | 11555 |
| XL-1115 | 1115 | <10 | 175 | 18.5 | 10710 |
| 2XL-1115 | 1115 | <10 | 350 | 18.5×2 | 16700 |
| XL-1370 | 1370 | <10 | 250 | 30 | 14530 |
| 2XL-1370 | 1370 | <10 | 490 | 30×2 | 25610 |
| XL-1676 | 1676 | <10 | 360 | 45 | 18570 |
| 2XL-1676 | 1676 | <10 | 725 | 45×2 | 41930 |
| 2XL-1830 | 1830 | <10 | 860 | 55×2 | 18570 |
| XL-928 | 928 | <65 | 155 | 22 | 6200 |
| 2XL-928 | 928 | <65 | 315 | 22×2 | 10990 |
| XL-1118 | 1118 | <75 | 225 | 30 | 9300 |
| 2XL-1118 | 1118 | <75 | 450 | 30×2 | 16350 |
| XL-905 | 905 | <75 | 125 | 110 | 22800 |
| XL-1120 | 1118 | <100 | 175 | 160 | 31950 |
2. Sand Washer Introduction

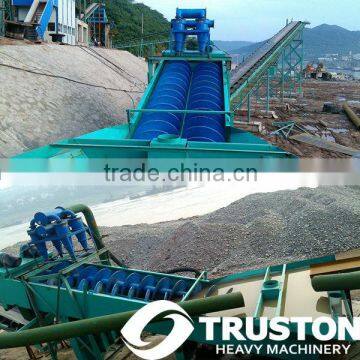

Sand washer is suitable for washing, classifying and dewatering of sand used in construction, quarry, hydropower station, concrete dam project, pole factory, as well as "soul-rending nature sand" for casting use,quartz sand for glassworks, and pressure sand for oil well backfill. With inclination angle of 180 , a setting pond is formed and surrounede by three-side plates at the bottom of water channel.The spiral head submerges into the setting pond,the spiral rotates continuously driven by motor and reducer, and clean water is fed into setting pond through the bottom perforated plate.
| |
| |
| |
