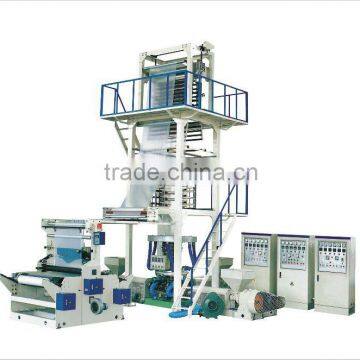

Three-layer Film Blowing Machine with rotary die head
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | KT | Model Number | SJ-3L 45/50/55 | |
| Voltage | 380v | Power(W) | 18.5kw | |
| Weight | 4t | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Three-layer Film Blowing Machine with rotary die head
CHARACTERISTICS:
1,Die head is layer type spiral mandrel, continuous 360°rotation.
2,Screen pack changer design is national convince, reliable, safe in operation.
3,Various functional parts may be installed to the lins, such as length counting device, vertical cutting device, cooling water draining , film spreading roller, scrap collecting device.
OPTIONAL EQUIPMENT
1)AUTO LOADER 2) CORONA 3)AIR COMPRESSOR 4)AIR COLLING DEVICE
5)MANUAL MECHANICE SCREEN CHANGER 6)DIE ROTARY DEVICE
Main technical parameters
Model | SJ-3L 45 | SJ-3L 50 | SJ-3L 55 |
Suitable materials | LDPE LLDPE HDPE EVA | ||
Film Width(mm) | 800-1300 | 800-1500 | 1200-2000 |
Film Thickness(mm) | 0.028-0.18 | 0.028-0.18 | 0.03-0.18 |
Max.Extrusion Output(kg/hr) | 130kg/hr | 190kg/hr | 260kg/hr |
EXTRUDER | |||
Screw Diameter(mm) | AΦ45 BΦ50 CΦ45 | AΦ50 BΦ55 CΦ50 | AΦ55 BΦ65 CΦ55 |
Screw L/D Ratio | 28:1 | 28:1 | 28:1 |
Screw Material | SACM-645/38 CRMOALA | ||
Cylinder Material | SACM-645/38 CRMOALA | ||
Cylinder Cooling | 370w x 2/3 | 370w x 2/3 | 550w x 3/3 |
Driving Motor(kw) | A11+B15+C11kw | A15+B18.5+C15kw | A18.5+B22+C18.5kw |
Temperature Control | 3*3 | 3*3 | 3*3 |
Average Power-consume(kw) | 45 | 58 | 70 |
TYPE OF DIE | |||
Die Size(mm) | Φ200/250 | Φ250/300 | Φ350/400 |
Temperature Control | 4 | 4 | 4 |
Air Ring | 1 | 1 | 1 |
Air Blower(kw) | 3 | 5.5 | 7.5 |
TAKE-UP UNIT | |||
Roller width | Φ165*1400 | Φ165*1600 | Φ190*2100 |
Take-up Speed(m/min) | 5-60 | 5-60 | 5-60 |
Take-up Motor(kw) | 1.5 | 1.5 | 2.2 |
WINDING UNIT | |||
Type | SURFACE FRICTION TYPE | ||
Winding Motor(kw) | 1.5 | 1.5 | 2.2 |
Winding Speed(m/min) | 5-60 | 5-60 | 5-60 |
Overall Diemension(L*W*H) | 7.5*5.5*7.0m | 8.2*5.8*7.0m | 9.0*6.4*8.2m |
Welcome to visit our website: for checking more machines productions.
