film blowing machine (with up and down)
- Ningbo/Shanghai
- Credit Card
You May Like
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Place of Origin | Zhejiang, China | Brand Name | KT | |
| Model Number | SJ-C50/55/60/65 |
Product Description
Specifications
1.HDPE/LDPE/LLDPE film blowing machine2.up and down device
3.rotary die
4.double winders with manual operation
5.1pc screw

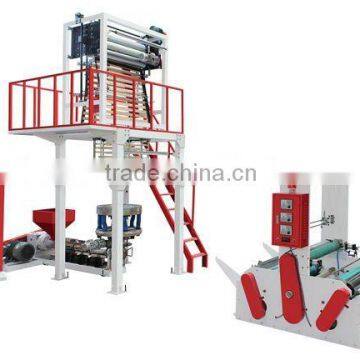

SJ-C series film blowing machine with rotary die and double winders
This film blowing machine/film extruder use quality of screw and barrel with nitrized processed, high quality air ring and die,all of which designed by ourself according to some TAIWAN designs; Blowing PE film with good quality.
OPTIONAL EQUIPMENT
1)AUTO LOADER 2) EMBOSSING ROLLER 3)CORONA 4) DIE ROTARY DEVICE 5)AIR COMPRESSOR 6)MANUAL MECHANICE SCREEN CHANGER 7) AIR COOLING DEVICE 8) DOUBLE SIDES WINDER
Model | SJ-C-50 | SJ-C-55 | SJ-C-60 | SJ-C-65 |
Suitable materials | HDPE LDPE LLDPE | |||
Film Width(mm) | 200-600 | 300-800 | 400-1000 | 600-1200 |
Film Thickness(mm) HD | 0.009-0.08 | 0.009-0.08 | 0.009-0.08 | 0.01-0.08 |
LD | 0.02-0.15 | 0.02-0.15 | 0.02-0.15 | 0.02-0.15 |
Max.Extrusion Output HD | 40kg/hr | 60kg/hr | 75kg/hr | 90kg/hr |
LD | 60kg/hr | 80kg/hr | 100kg/hr | 125kg/hr |
EXTRUDER | ||||
Screw Diameter(mm) | Φ50 | Φ55 | Φ60 | Φ65 |
Screw L/D Ratio | 28:1 | 28:1 | 28:1 | 28:1 |
Screw Material | SACM-645/38 CRMOALA | |||
Cylinder Material | SACM-645/38 CRMOALA | |||
Cylinder Cooling | 180w | 180w | 250w | 250w |
Driving Motor(kw) | 11kw | 15kw | 18.5kw | 22kw |
Temperature Control | 3 | 3 | 3 | 4 |
Average Power-consume(kw) | 15 | 18 | 26 | 30 |
TYPE OF DIE | ||||
Die Size(mm) HD | Φ60/80 | Φ80/100 | Φ100/125 | Φ125/150 |
LD | Φ150 | Φ180 | Φ250 | Φ300 |
Temperature Control | 3 | 3 | 3 | 3 |
Air Ring | 1 | 1 | 1 | 1 |
Air Blower(kw) | 2.2 | 2.2 | 3 | 4 |
TAKE-UP UNIT | ||||
Roller width | Φ165*650 | Φ165*850 | Φ165*1100 | Φ165*1300 |
Take-up Speed(m/min) | 10-80 | 10-80 | 10-80 | 10-80 |
Take-up Motor(kw) | 0.75 | 1.5 | 1.5 | 1.5 |
WINDING UNIT | ||||
Type | SURFACE FRICTION TYPE | |||
Winding Motor(kw) | 5N.m | 10N.m | 10N.m | 16N.m |
Winding Speed(m/min) | 10-80 | 10-80 | 10-80 | 10-80 |
Overall Diemension(L*W*H) | 5.0*2.0*4.5m | 5.0*2.2*5.0m | 5.5*2.5*5.5m | 5.8*2.8*6.5m |
welcome to visit our website: for checking machine videos and more machines.
