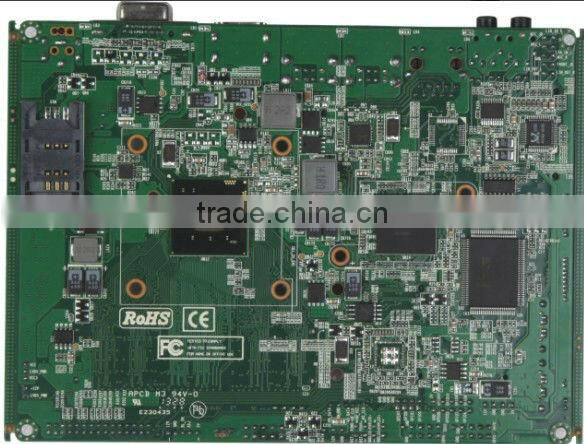

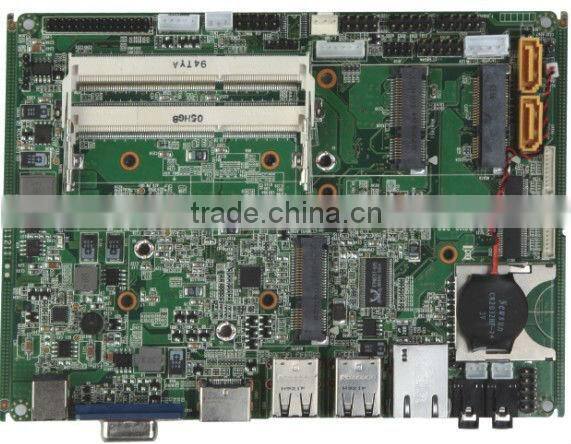

Embedded Singal- Board Computer Motherboard (pcm3-d2550)
- HongKong
- Credit Card PayPal
You May Like
Product Details
| Products Status | Stock | Application | Laptop | |
| Chipset Manufacturer | Intel | Socket Type | Other, onboard cpu | |
| Form Factor | Mini-ITX | Memory Type | DDR3 | |
| Graphics Card Type | Integrated | Hard Drive Interface | SATA | |
| FSB / HT | 1066Mhz | Brand Name | LingJian | |
| Model Number | pcm3-d2550 | Place of Origin | Guangdong, China |
Product Description
Specifications
1.mini itx industrial motherboard intel atom d2550 processor.2.motherboard with 2xpci-e.
3.with SD slot,Sim card.
intel atom d2550 processor industrial motherboard (pcm3-d2550)
Pcm3-D2500
Advantages:
1.dual display HDMI+VG+Lvds
2.Support RS-485 & WIFI & 3G & HDMI, it's a multi-function industrial embedded computer.
3. With Intel Atom D2550 CPU , and Intel SATA SSD Compatible
Features:
Wide Operating Temperature(-25-70 Celsius degree), storge temperature (-40-80 Celsius degree)
Ultra Low Power and Fanless Design
Support One VAG/HDMI Outputs
Support C Fast Slot
Support Optional WIFI Connection
Wide Range DC Power Input
Rugged Design for Shock/Vibration Protection
Easy Installation/Maintenance
Intel SATA SSD Compatible
More information as below
System Specification | |
Processor | Onboard CPU intel atom d2550 (1.86Ghz) |
BIOS | AMI Plug Play BIOS |
System Chipset | Intel ICH10-M+Intel Atom D2550 |
System Memory | 2 x DIMM, Max 8GB DDR3 1333/1066 |
Graphic Interface | Integrated on Intel(R) Atom D2550,18/24-bit signal channel LVDS support HDMI VGA |
Ethernet Controller | 1x RJ-45, Gigabit Ethernet_RTL8111E |
I/O Chipset | ITE 8718F/HX-L |
Serial | 2x RS232(1xRS232/422/485), ports |
USB | 4 x USB ports, USB 2.0 compliant |
LVDS | 18/24 bit LVDS |
expansion | 2xPCIE/ 1xpci-e(M-sata) |
Watchdog Timer | 1~256 levels |
Key Features | Support dual core Intel Atom D2550 1xGbE, 2xCOM, 4xUSB |
I/O Connectors | |
Front Side I/O | 2 x USB Type-A Receptacle |
Back Side I/O | 1 x RJ-45(10/100/1000 Mbps) 1 x VGA 15P DSUB (male) 1xHDMI 2 x RS232(2xOptional include 1x RS232/422/485) 4 x USB Type-A Receptacle |
Mechanical and Environment | |
Dimensions (L x W) | 168*119mm |
Construction | Aluminum housing / Metal |
Power Input | +9-30V DC IN (Lockable, Power Jack) |
Net Weight (kg) (without touch) | 0.35KG |
