Embeddd and Fanless Industrial Firewall Motherboard GM45-6LAN(B)

Specifications

Embeddd and Fanless Industrial Firewall Motherboard GM45-6LAN(B)

Introduction

1. Support Intel Penryn Processor

2. Package type: Micro-FCPGA479 (Socket-P)

3. Front side bus: 667/800/1066 MHz

4. Intel GM45 & ICH9-M (82801IBM)

5. Two DDRIII 800/1066 up to 8GB

6. 2x SATA 3 Gb/s, 2x USB 2.0, 1x Fast Ethernet (Optional GbE)

1xRS232 RJ45

7. 4 x Intel 82574L Gigabit LAN 2* BY PASS,2 x Fiber Interface

8. One PCI Express mini card, One PCI

System

CPU Support Intel Pentium Processor

Package type: Micro-FCPGA479 (Socket-P)

Front side bus: 667/800/1066 MHz

Chipset Intel GM45 & ICH9-M (82801IBM)

Memory Two DDRIII 800/1066 up to 8GB

BIOS AMI PnP 8Mb SPI ROM

Display Intel integrated extreme GMA 4500MHD

(Graphic Media Accelerator) Technology

Peripheral Support

2 x serial ATAII interface with 300MB/s transfer rate

4 x USB connector, 1 x PS2,

1 x RS232, 1 x VGA

2 xLED(PWOR_ LED+HD_ LED

1 x RS-232(RJJ 45)Port

4x LAN Port

6 x USB

1xCF

Power connector ACPI 1.0 compliant, supports power saving mode

Expansion One PCI Express mini card, One PCI

LAN Interface 4 x Intel 82574L Gigabit LAN 2* BY PASS,2 x Fiber ports

Watchdog Timer 1-255 step,can be set with software on Super I/O

Hardware Monitor Operating voltage, CPU temperature and fan speed

Dimensions 170 x 190 mm

Environmental factors

Operation Temp: -20ºC - 65ºC

Storage Temp.: -20ºC - 80ºC

Humidity: 5% - 95%

Certifications CE, FCC ROHS

Products Display

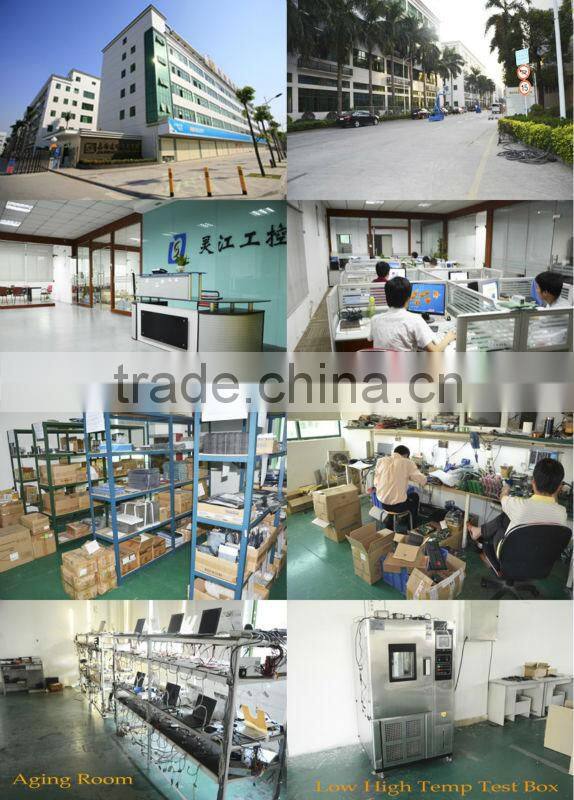

Company profile
