Six Single Channel LVDS to VGA Signal Converter (LDVGA01)

FOB Price

US$ 1 - 29 / Piece

2 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock		Brand Name	LingJiang
Model Number	LDVGA01		Place of Origin	Guangdong, China

1.change the LVDS mode input signal into the VGA/DVI model output signal.
2.Fully support LCD panel refresh rate at :50 Hz/60Hz

Product brief introduction

1"LVDS change into VGA/DVI signal converter"used to change the LVDS mode input signal

into the VGA/DVI model output signal

2.It was based on the usual interface design, compatible with the main LCD panel on the market.

3.Fully support LCD panel refresh rate at :50 Hz/60Hz LCD panel

Maximum supported refresh rate: 024*768/ 1366*768 *60Hz

Main parameter:

Size: 59mm×52mm×12mm

Input interface: support single 6/8 LVDS signal, 2*15 pin. 2.0mm spacing

Output interface: standard DB15/10 pin VGA built-in, stand 3*8 pin DVI-I port

Display support:Maximum resolution ratio: 1366*768/1024*768*60Hz

Working environment:Temperature:-50-50 Celsius degree,Humidity:5%-85%

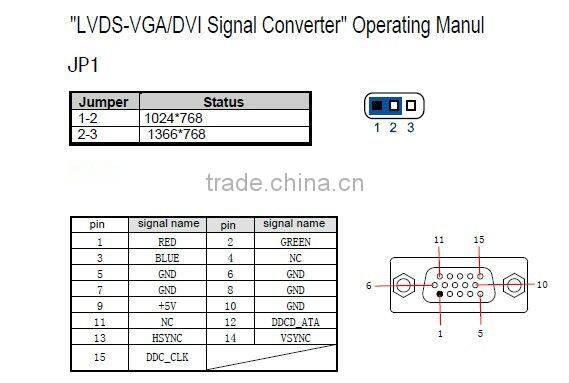

Module specification

LVDS-VGA/DVI Signal converter installation:

Please install the converter correctly, if not, it will not work, even will caused damage to the other parts.
