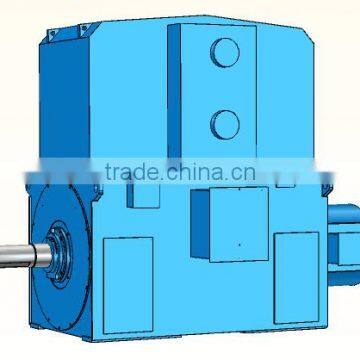

Shanghai quanlai electric Wound motor series High Voltage Three Phase AC Motor

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Quanlai	Model Number	YKK/YKS/YRKS/YRKK
Type	Asynchronous Motor	Frequency	50HZ/60HZ
Output Power	315kW-20000kW	Protect Feature	Drip-proof
Phase	Single-phase	AC Voltage	Other, 6KV/10KV
Place of Origin	Shanghai, China	Efficiency	IE 3

Product Description

Wound motor series High Voltage Three Phase AC Motor

1.Description:

YR series medium size high voltage 3 phase asynchronous slip ring wound rotor motors are high in efficiency, reliable in operation and easy to mount and maintain. This series motors are also advanced in mechanical, electrical and insulation performance, and high technology in manufacturing.

YR series High Voltage Slip ring Wound rotor motor are used to drive compressor, ventilator, water pump, breaker, cutting machine, grinding mill and other general purpose machines.

The frame of motor is welded by steel plates to be formed a box-type.

The rotor winding of YR series High Voltage Slip ring Wound rotor motor is made of copper bar wrapped, with class F insulation.

The High Voltage Slip ring Wound rotor motor is designed to use rolling bearing with grease lubrication or sliding with diluted oil lubrication. The oil can be charged and discharged conveniently.

2.Comparison of different series High Voltage Electric Motor:

No.	Squirrel cage motor	Y	YKK	YKS	Y2
No.	Slip ring motor	YR	YRKK	YRKS	/
1	Structure	Box-type construction, made up of steel plates welded with each other			Compact struction
2	Cooling method	IC01 or IC11, IC21, IC31	IC611 or IC616	IC81W	IC411
3	Cooling method	Natural ventilation, with top mounted protection cover	With top mounted air-air cooler	With top mounted air-water cooler	TEFC
4	Protection type	IP23	IP44 IP54 IP55	IP44 IP54 IP55	IP54 IP55
5	Insulation	F
6	Mounting arrangement	IMB3
7	Voltage available	3 kv, 3.3 kv; 6 kv, 6.6 kv; 10 kv, 11 kv
8	Frequency available	50 Hz , 60 Hz

Mounting outline drawing

Packaging & Shipping

♦ Package: One piece in one plywood case

♦ Shipping: By Sea
