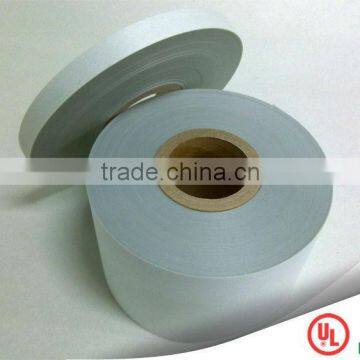

DMD polyester flim and insulation paper lamination
Negotiable
/ Kilogram
50 Kilograms(Min. Order)
You May Like
-
DM Insulation paper lamination F class
-
Lamination motor insulation paper
-
Lamination electrical insulating paper
-
insulation materials paper transformer insulation paper
-
DMD polyester flim and heat insulation paper lamination
-
Polyester flim and heat insulation paper lamination thermal insulation paper
Product Details
| Place of Origin | Shanghai, China | Brand Name | DEAN | |
| Model Number | DMD | Type | Insulation Paper | |
| Material | Composite Polymer | Application | High Voltage | |
| Rated Voltage | 8KV-28KV | Tensile Strength | Excellent tensile strength |
Product Description
Specifications
Material:polyester film;non-woven fabricSuitable for solt,phase and liner insulation
Discription: DMD is laminated by two layers of fabric paper with polyester film in the middle. It shows excellent merchanical and electrical properties and good heat resistance . It is suitable for solt, phase and liner insulation in classF special electric motors.
Thermal Class: F
Color: Normally white, still pink and blue selectable.
| Item | Unit | Index | |||||||||
| Thickness | mm | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.30 | 0.35 | 0.40 | ||
| Specific weight | g/m³ | 138 | 182 | 207 | 208 | 274 | 326 | 426 | 449 | ||
| Tensile strength | Parallel | unfold | N/10mm | 103 | 137 | 151 | 156 | 207 | 244 | 234 | 353 |
| fold | 100 | 133 | 151 | 160 | 209 | 243 | 313 | 349 | |||
| Cross | unfold | 82 | 127 | 127 | 129 | 181 | 223 | 336 | 364 | ||
| fold | 80 | 117 | 132 | 128 | 179 | 227 | 329 | 365 | |||
| Breakdown Voltage | KV | 8 | 10 | 12 | 12 | 14 | 15 | 16 | 28 | ||
| Thermal Class | - | F | |||||||||
| Test method | - | GB/T 5591.2-2002 | |||||||||
