Product Details

Place of Origin	Jiangsu, China	Brand Name	WX
Model Number	WFJ	Application	Powder
Type	Concentrator	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1. WFJ-30 pharmaceutical fine grinding
2.Model:WFJ-30
3.Size of input:less than 10
4.size of output:80-320

Skype:lisacheng50

WFJ-15/20 herb pharmaceutical fine grinding

Main Application:

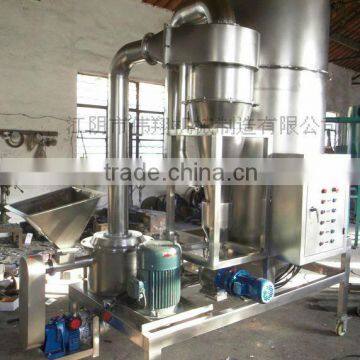

Model WFJ-15/20 Micronizer consists of main motor,auxiliary motor,and electrical control cabinet with the capabilities of winnowing,non-sieve or mesh,equality of granule size,and continuous processing etc.It is used in the industries of pharmaceutics,chemical,and food.Its performance is up to the international advanced level.

Operating Principle:

The material is sent to grinding chamber through hopper and screw conveyer, and then pulverized by high speed rotary blades.Processed fine material are winnowed and collected by the negative pressure of an air intake of a blower,dust collector is included.

Nowadays, Jiangyin Haixiang Machinery Co.,ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Model	Production Capacity(kg/h)	Feeding Size(mm)	Size of output granules(mesh)
WFJ-15	10~200	<10	80~320
WFJ-20	20~300	<12	80~320

Total power(kw)	Main speed(r/min)	Overall Size(L×W×H)	Weight(kg)
13.5	~6000	4200×1200×2700	850
17.5	~4800	4700×1250×2900	1250
