Fixed Elevated Scissor Elevating Platform
- QingDao
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | JinChuan | |
| Model Number | SJG |
Product Description
Specifications
1.high-strength steel2.high load and unload
3.easy to control,safe and secure
efficient
5.ISO9001:2000
fixed elevated scissor elevating platform is generally used for lifting cargo and people to working place .Loading andunloading goods from groud to undergroud or to other floors.
Product advantages:
Hydraulic lifting system, the remote control and multi-control points at the different floors could be realized. Lift Up,Stop and Lower could be realized at each control point. The lift platform could stop at the accurate loaction point. Smooth working condition,high load capacity, safe and reliable. The overload protection devices are available and meanwhile the hydraulic system has the anti-drop function when any failure happens.
Applications:

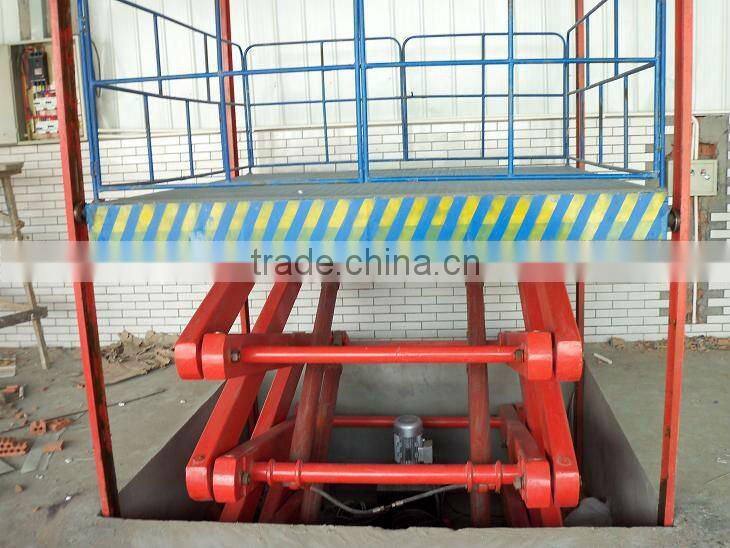

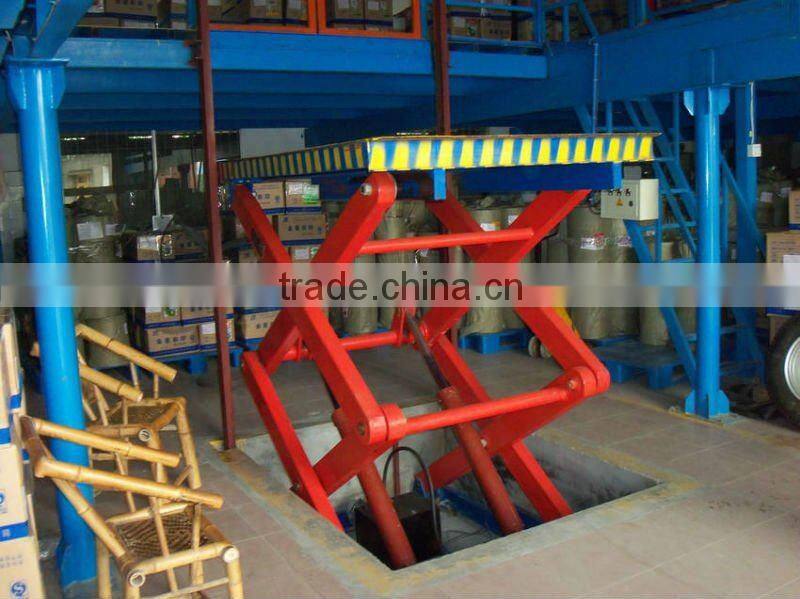

It is drived by the electric and hydraulic system, the lift platform is lifted up and drops down along the track;It is installed in the pit or the ground floor to convey the goods from one floor to another and convey the goods from one working level to another. The control panels are available at the designated floors and one the lift platforms. The multi-control points are realized, the lifting height are accurate and it work smoothly.The lifting capacities widely range from 200kg to 15 tons.
This model of scissor lift is designed and produced on the special requirement from customers, on four aspects: carrying capacity, lifting height, dimension of table, and power supply.
They have two mainly types for different sites. One is to be sited on a special place to loading cargos and lifting to a certain height to handle and move cargos.
| Model | Capacity(KG) | Platform Size(M) | Lifting Height(M) | Dimension(M) | Pump Station(KW) |
| SJYG0.8-3.5 | 800 | 1.8*1.2 | 3.5 | 1.8*1.2*0.8 | 2.2 |
| SJYG2-3.5 | 2000 | 1.8*1.2 | 3.5 | 1.8*1.2*0.68 | 3 |
| SJYG2-0.5 | 2000 | 1.8*1.6 | 0.5 | 1.8*1.6*0.44 | 2.2 |
| SJYG1-6 | 1000 | 1.9*1.1 | 6 | 1.9*1.1*1.1 | 3 |
| SJYG2-6 | 2000 | 2.0*1.3 | 6 | 2.0*1.3*1.2 | 4 |
| SJYG1.5-0.8 | 1500 | 2.0*1.5 | 0.8 | 2.0*1.5*0.5 | 3 |
| SJYG1-4.3 | 1000 | 2.0*1.8 | 4.3 | 2.0*1.8*0.8 | 4 |
| SJYG3-2.4 | 3000 | 2.0*2.0 | 2.4 | 2.0*2.0*0.66 | 4 |
| SJYG2-5 | 2000 | 2.1*1.2 | 5 | 2.1*1.2*0.87 | 4 |
| SJYG3-6.5 | 3000 | 2.2*1.9 | 6.5 | 2.2*1.9*2.12 | 5.5 |
| SJYG2-1.3 | 2000 | 2.3*2.0 | 1.3 | 2.3*2.0*0.4 | 2.2 |
| SJYG5-6.5 | 5000 | 2.2*1.6 | 6.5 | 2.2*1.6*1.28 | 5.5 |
