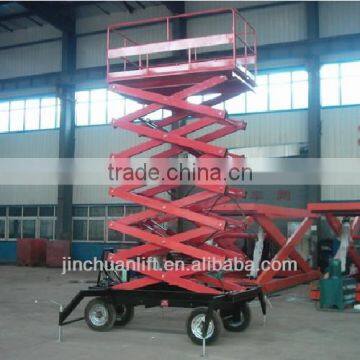

professional design and manufacture hydraulic electric scissor lift table

Specifications

 general

 Scissor Lift Lifting height:

 2m,4m ,6m, 8m,10m ,11m and so on. And the max height of the Stationary Scissor Lift is 18m. please refer to the Products Specification List.

Scissor Lift Loading capacity:

 3000kg,5000kg,8000kg,10000kg and so on. The Max capacity could be 100000kg.

Scissor Lift motive power:

 •Local power available at the working sites:AC110V,AC220V,AC380V,AC415V,50HZ,60HZ.

 •DC12V,DC24V,DC36V,DC48V,and so on.

 •Diesel engine or gasoline generator, in the absence of power supply

 Scissor Lift Applied range:

   It is widely used for the equipments installations and maintenance at the following places like construction sites workshops,warehouse,granary,bus/railway stations,hotels,airports,gas station and aerial pipeline.

Scissor Lift environment condition:

 Operating environment: Temp. -10 - 45°C, RH 10-95%

 Storage environment: Temp. -20 - 60°C, RH 10-95%

Scissor Lift Hydraulic oil:

 In summer using 32 #

 In winter using 46 #

Scissor Lift should fulfill following regulations:

 •Chinese (international )machinery industry standards.

 •Certificate for operation in Chinese(international )

 •Chinese(international )electrical equipment industry standards.

Stationary Scissor Lift  execute Standards:

•JB/T9229.1-1999 The people's Republic of China machinery industry standard shear and basic parameters of fork lift type standards.

•JB/T9219.2-1999 The people's Republic of China machinery industry standard – scissors elevating platform technology standards.

•JB/T9229.3-1999 The people's Republic of China machinery industry standard shear test method for fork lift platform

•GB/T19001-2000 Quality management system requirements

•GB/T14971999 Electrical components, wiring, insulation standards

•GB/T 7935-2006 General technical conditions of hydraulic components

Stationary Scissor Lift control Panel:

Generally have the following button:UP button,DOWN button, Emergency stop button, power indicator

Stationary Scissor Lift Safety Devices:

•Emergency stop

•Overload protection

•Safety symbols

•Safety bumpers

•Explosion-proof valve,Prevent the platform fell sharply when the tubing is broken

•Overflow valve

•Double stroke switch,etc.

Stationary Scissor Lift Quality control system:

•In strict accordance with the relevant international standards and China standards Production processing

•Implementation of ISO9001 quality control system.

Stationary Scissor Lift Packaging:

 Out Packaging, we generally use the angle iron and plywood. Inner packaging, we generally use non-woven fabric. demand-side packaging can be specified. or to be defined.

Delivery to the customer's documents:

 •Instruction Manual

•Maintenance Manual

•Production schedule and Production schedule real photos,a day Provide once, let you reassuring.

•Detail drawings, convenient to repair and maintenance, let yo have not trouble back at home.

•Assembly drawings or Real photos

•Customers want to get other Documentations

 Stationary Scissor Lift   pump station
