Home > Products > stationary scissor lift platform > Hydraulic Car Scissor Lift Parking
Hydraulic Car Scissor Lift Parking
- Qingdao
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | jinchuan | |
| Model Number | SJG | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Electric Motor | Power | 5.5kw,5.5kw/380v | |
| Rated Loading Capacity | 4000kg | Min. Lifting Height | 0.81m | |
| Max. Lifting Height | 4.7m | Table Size | 5*2.8m | |
| Overall Dimensions | 5*2.8*0.9m | Weight | 3800kg | |
| Certification | CE;ISO9001 | Warranty | 1year apart from man-made fault |
Product Description
Specifications
hydraulic car scissor lift parking1. Load capacity: 4000kg
2. Lifting height: 3.0m
3. Platform size: 5*2.8m
4. CE;ISO9001

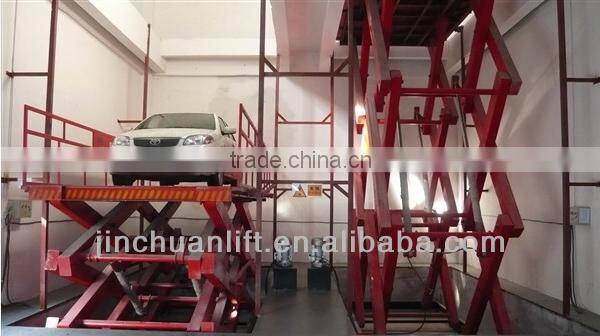

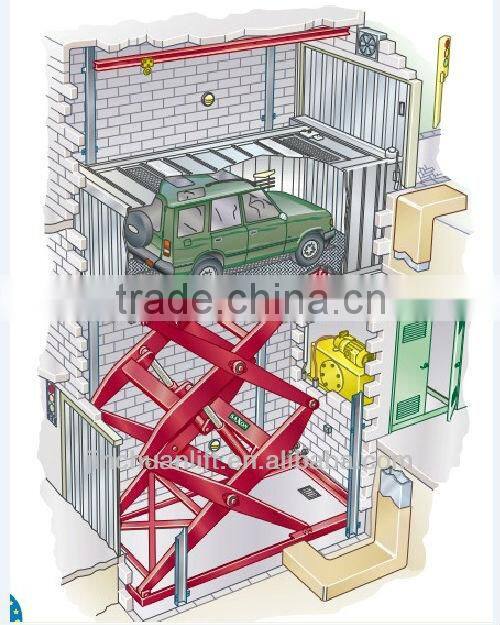

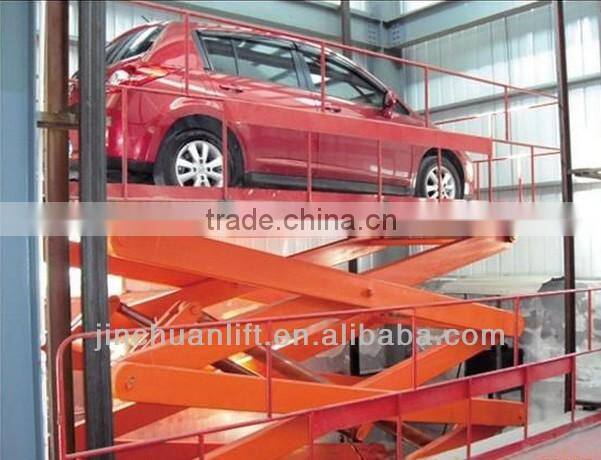

Hydraulic car scissor lift parking
1. Main parameter
TYPE | SSL4-3.0 |
Name | hydraulic car scissor lift parking |
Lifting height | 3.0m |
Working height | 4.7m |
Platform size | 5*2.8m |
Loading capacity | 4000kg |
Packing | Plywood package |
Delivery time | 15working days |
2. Applications:
---With heavy duty, perfect stability, long service life
---The control panels are available at the designated floors and one the lift platforms.
---Widely used in warehouse, workshop, industrial places, basement, station etc. Indoor or outside is OK.
3. Safety Precautions:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Payment terms
1. 50% T/T before production, the balance should be paid before shipment.
2. L/C is also acceptable.
3. Per your special requests are also welcome for discussion.
5. Warranty
1. One year warranty apart from man fault
2. Free spare parts along with the shippment.
3. Per your special requests are also welcome for discussion.
