Home > Products > New Products > 1700c 1800c 1900c u Type Molybdenum Disilicide Mosi2 Heating Elements

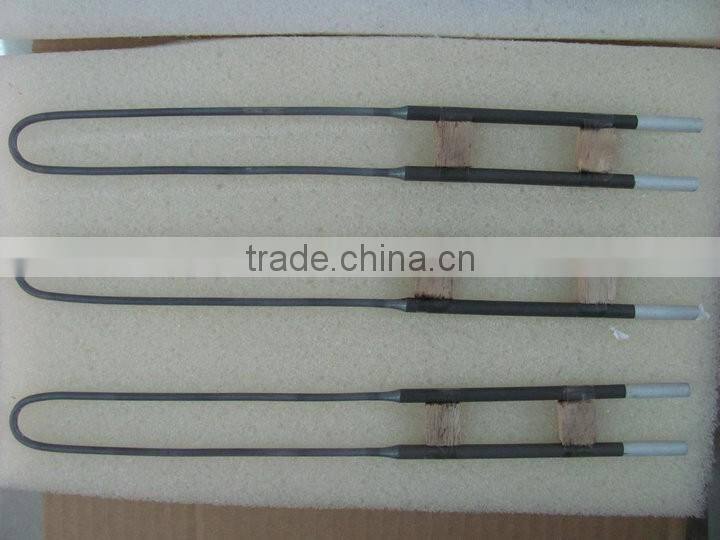

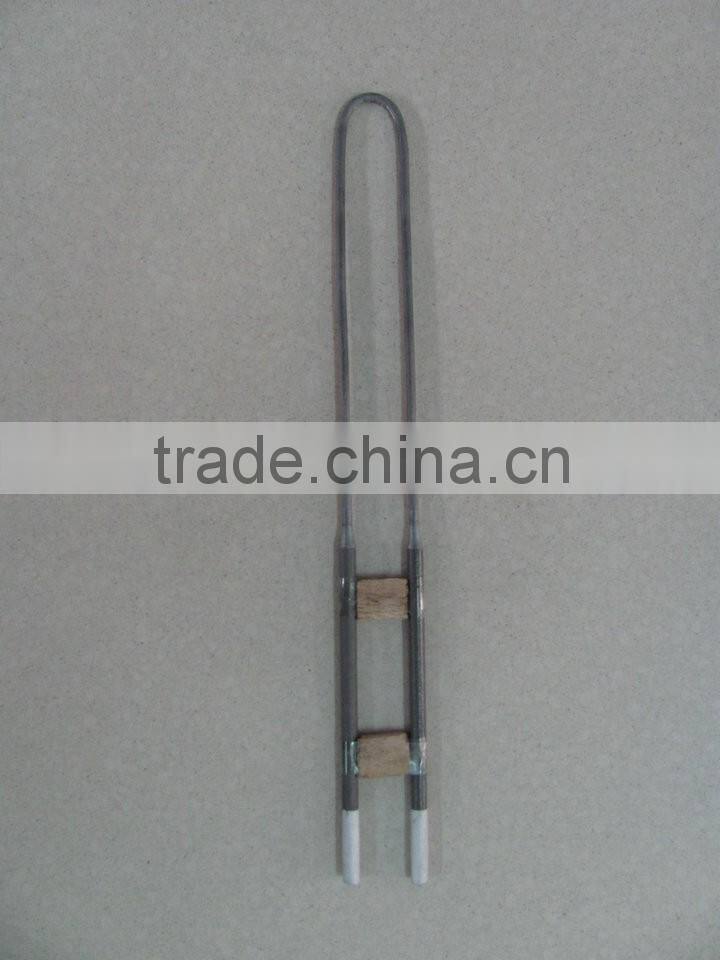

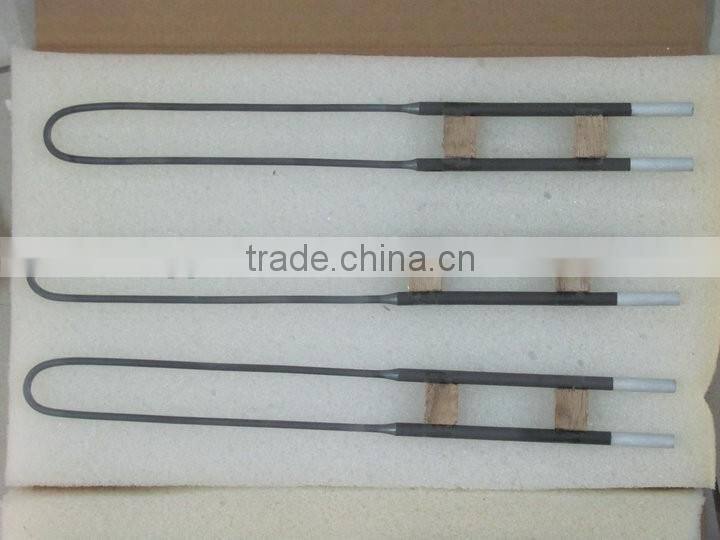

1700c 1800c 1900c u Type Molybdenum Disilicide Mosi2 Heating Elements

FOB Price

US$ 20 - 200 / Piece

4 Pieces(Min. Order)

Port Any port of china
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yifan		Model Number	YF
Place of Origin	Henan, China

Product Description

Order sample:
d=6mm, c=12mm, Le=200mm, Lu=180mm, a=30mm
Please specify as: dia6/12x200x180x30mm (dia d/cxLexLuxa mm)
d = the diameter of hot zone
c = the diameter of cold zone
Le = the length of hot zone
Lu = the length of cold zone
Standard sizes:
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
Molybdenum disilicide (MoSi2) heating element is a resistance generate-heating component made from MoSi2 or the basic material. It is used in high temperature under the oxidizing atmosphere, it looks like glass in its surface and form a light SiO2 glass film which can protect the element not to be oxidized. So this kind of element has unique effect for resisting oxidization in the high temperature. It is used to the highest temperature up to 1800C during oxidizing atmosphere. According to your request, our company can produce the products of Pole, "U", "W" and "U"-right angle shapes, etc. MoSi2 heating element can usually make use of furnace temperature from 1300C to 1800C. It is extensively used in the industries of metallurgy, glass, ceramic refractory, crystal electronic device, industrial furnace manufacture, etc.. It is an essential ideal element when the products are sintering in the high temperature.
MoSi2 heating elements physics and chemistry characters:
1. Physics Characters
Volume Density	Bending Strength	Vickers Hardness	Porosity	Water absorption	Heating Elongation Rate
5.5 g/cm3	15-25 kg/cm3	(HV)570kg/mm2	7.4%	1.2%	4%

2. Chemistry Character
MoSi2 heating element is used in the high temperature under oxidizing atmosphere. It will form the SiO2 film which can keep the element from being melted. During the oxidizing process, the SiO2 protecting film is formed again when the element continues to be used. The MoSi2 heating element must not be used in the temperature between 400C and 700C for a long time, otherwise the element will be cremated under the strong oxidizing function in the low temperature.

Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: L/C T/T, West union,etc.
Shipping and Delivery: by air a, in 15 days after receiving the payment
Warranty:1 year limited
Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.

U shape mosi2 heater heating rods Direct Manufacturer

M1900 long service life molybdenum disilicide dental furnace adopt mosi2 heater mosi2 heating elements

we provide special designed MoSi2 elements according to customer needs, enabling an optimized element design for each particular application

How to order

Pls comfirm follow data before inquiry Thank you !

Then we will detail quote for your reference.

WHY US MOSI2 HEATER

High puriy material make sure higher max working temperature 1900C

Tight tolerance make sure the right installation.

Larger quantity tubes in stock ensured fast delivery

Larger capacity ensure tube best prices.

Good service :professtional sales offering suitable MOSI2 HEATER ,best after sale service ,expert team solve all problem when using .

Application

1500-1800C Resistance furnace heater ensure fast heating and better high-temperature oxidation resistance ,using for glass , metallurgy,ceramic ,magnetic material .
