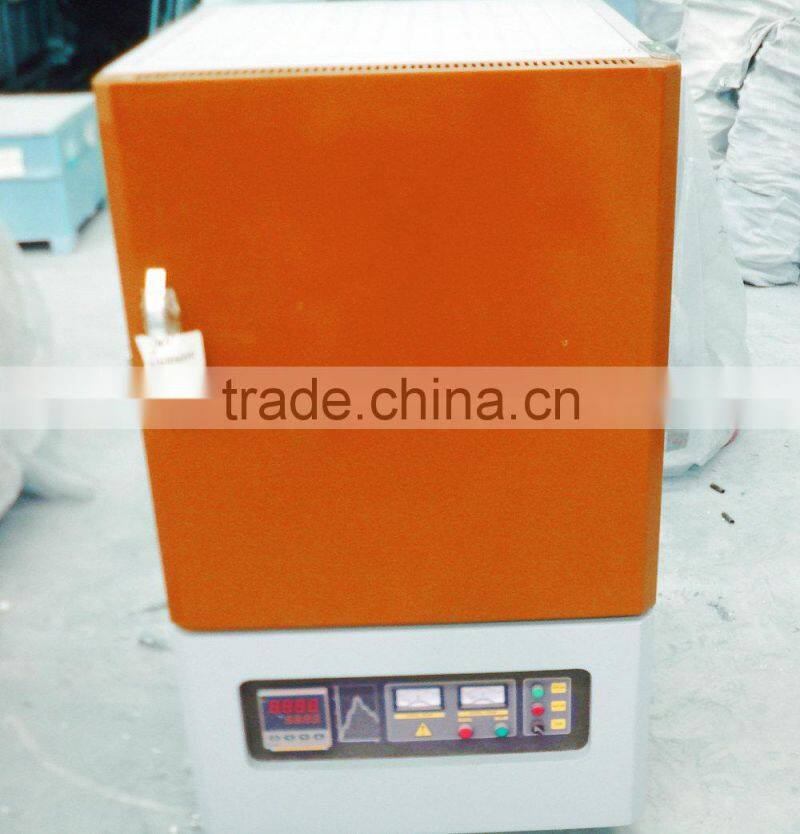

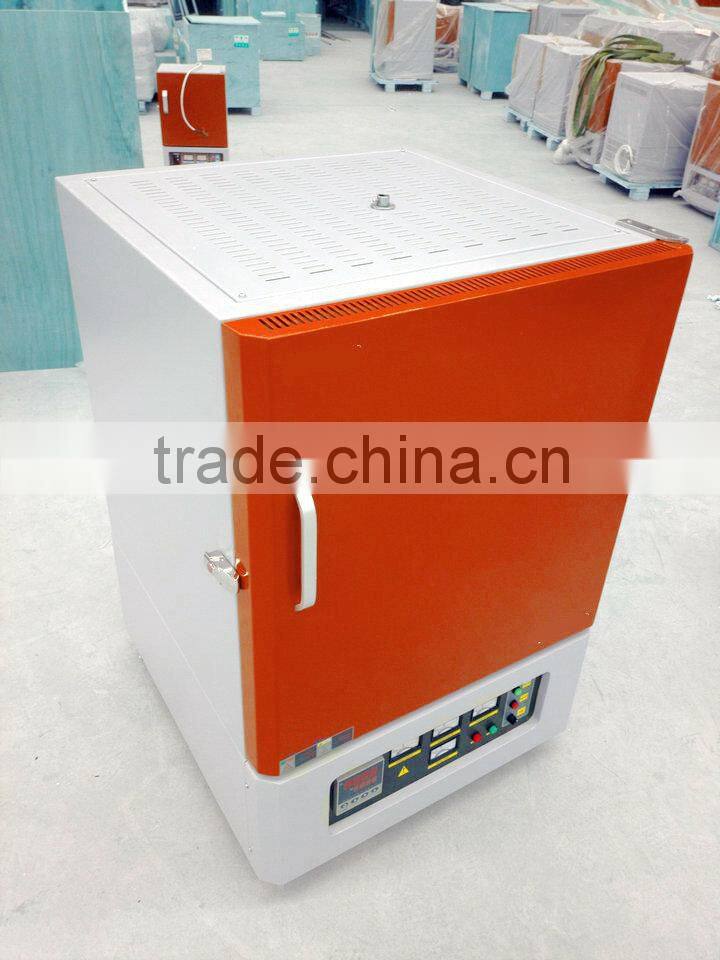

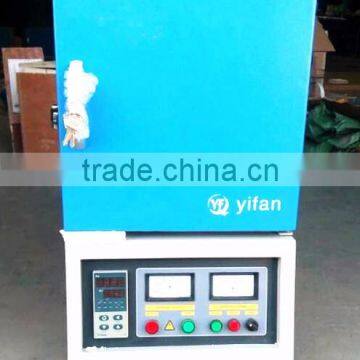

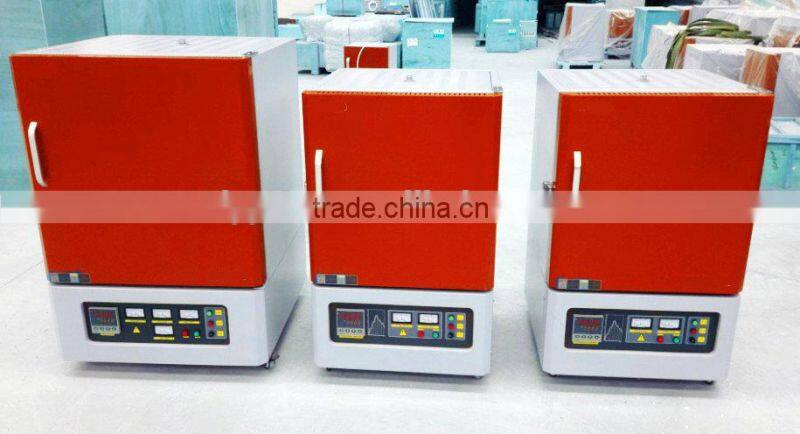

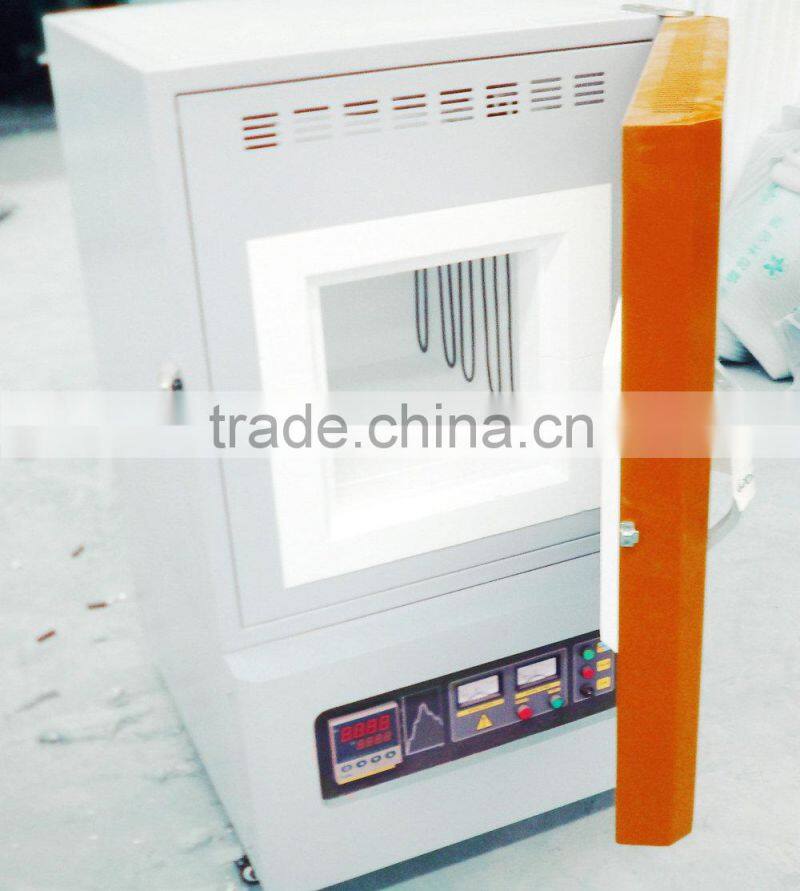

Electric Furnace for Ceramics, Laboratory Electric Furnace, Laboratory Stoves

YF-1700 Box type electric lab furnaceis adopted imported high quality silicon molybdenum rod as heated

element; it adopts the dual shell structure and intelligent auto-control temperature system, SCR control, phase

shifting trigger. The chamber is adopted the 1700 type imported polycrystalline alumina fiber. Equipped with

cooling system between the dual shell, which can rise and cool swiftly; Using constant current soft-start

control, to extend the life of heating elements.

Main function & Features:

1. Furnace chamber adopted imported alumina polycrystalline fiber, with good insulation and durability properties; And adopted the imported silicon molybdenum rod as heating elements, greatly improving the service life;

2. With unique furnace design , durable to use, does not collapse;

3. Side open type furnace door, open the door power outages;

4. Reserved 485 converter interface, can remote control of single or multiple furnace through software and Internet, real-time tracking , history recorder, output statements; can install the paperless recording device for data storage and output;

5. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.

Main uses:

Universities, research institutes, industrial and mining enterprises to do the powder sintering, sintering of ceramics, high temperature experiments, material handling, quality inspection purposes.
