Jaw Type Vulcanized Tyre Tread Press/tyre Tread Vulcanizer
- qingdao china
- T/T
You May Like
Product Details
| Condition | New | Type | Vulcanizer | |
| Place of Origin | Shandong, China | Brand Name | eenor | |
| Model Number | all various | Voltage | 220V-500V | |
| Certification | ISO9001:2008 SGS | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Jaw Type Vulcanized Tyre Tread Press/tyre tread vulcanizer.2.automatic PLC operation system.
Jaw Type Vulcanized Tyre Tread Press/tyre tread vulcanizer:
tyre tread vulcanizing press machine mainly used in tire surface forming machine, automatic sulfide has forced open mold, automatic mode, introduced in PLC control can be done automatically mould, vulcanization timing, exhaust time and frequency setting, mould, etc, and is equipped with working cycle is manual control rubber vulcanization products advanced and reliable automation equipment.
The detailed explanation of this machine:
NO. | Type | XLB-Q4100x460x5, Jaw type("C" shape) | |
1 | Total pressure | MN | 7.00 (700 Tons) |
2 | Plate size | mm | 4100x460x70 |
3 | Plate clearance | mm | 125 |
4 | Diameter of pistons | mm | 285mm |
5 | Number of piston | Set | 7 sets |
6 | Piston stroke | mm | 600 mm |
7 | Working layer |
| 5 layers |
8 | Plate pressure | Kg/cm2 | 37.0 kg |
9 | Operation system |
| PLC and touch screen control panel Brand: Mitsubishi |
10 | Heating mode |
| Steam or oil |
| Structure |
| Jaw type structure |
11 | Price (FOB Qingdao port) |
| |
Remarks: 1. The machine has automatic alarm, opening and closing moulds. Automatic fill pressure, Automatic exhaust, curing time etc. 2.Packing :exporting standard 3.warranty: 1 year guarantee period. | |||
Item | XLB-Q5000*670 tyre tread vulcanizing machine | |
Total pressure | MN | 8.00 (800T) |
Hot plate size | MM | 5000*670 |
Plate clearance | MM | 200 |
|
|
|
Workig layer | layer | 4 |
Piston number | set | 8 |
Piston diameter | MM | 8*285 |
Structure form | Jaw type (As picture) | |
Heating mode | Oil or steam heating | |
Operation mode | Automatic PLC system. | |
Open speed | MM/S | 12-15 |
Close speed | MM/S | 12-20 |
Worktable pressure | Mpa | 4.06 (40.6kg/m2) |
OUR CUSTOMERS:

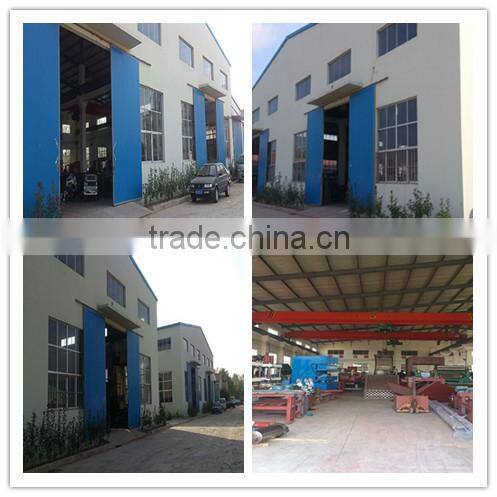

OUR WORKSHOP:
FAQ:
1.Q:Are you a factory or trading company?
A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
