MS505C Reader & Encoder (4000 oe) for magnetic card accept Paypal

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Port Jinan airport or Qingdao port
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MingWah		Model Number	MS505C
Place of Origin	Guangdong, China

Product Description

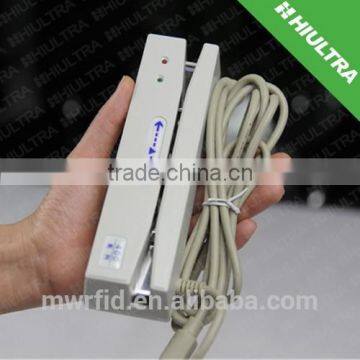

MS505C Reader & Encoder (4000 oe)

The MS505C is designed to offer a reading and writing solution of high and/or low coercivity cards that will attractively complement an existing system.

Technical Parameters

ITEM	SPECIFICATION
Standard	ISO7811
Electrical
Consumption	Current/operating Typical 350mA Max
Consumption	600mA plus for each writing track
Communication	Standard RS232 signal voltage levels. Default, 9600 Baud, None Parity, 8 bits. USB
Power supply	External switching Power 24V/2.2A regulated
Mechanical
Body	ABS UL94V-0, Metal housing optional
Swipe	Manual, single direction
Outline	210Lx68Wx60H mm
Weight	1.5Kg approx.
Environment
Operation	-10ºC to 60ºC
Operation	10 to 85% humidity, non condensing
Storage	-30ºC to 70ºC
Storage	10 to 90% humidity, non condensing
Performance
Read Circuit	Track 1&3; 210bpi
Read Circuit	Track 2; 75 or 210 bpi
Bit per Char	5 or 7 bit per char.
Media Speed	Read, 5-50 ips (read speed 5-40 ips for track 2 at 210bpi)
Media Speed	Write, 5-30 ips
Media Coercivity	Read 300 ~ 4000 Oe Magnetic Card
Media Coercivity	Write 300-4000 Oe Magnetic Card
Media Thickness	0.76 ~ 1.2mm
Jitter Card	Read bit to bit interval <+/-15% card
Jitter Card	Write bit to bit interval <+/-10%, Sub interval<+/-12% at 30ips
Low amplitude Card	Read 60% for both 75& 210bpi
Error Rate	Read < 0.5%
Error Rate	Write < 0.8%
Media Swipe	Head life 1,000,000 passes for both read & write head
