Mobile NFC Card Reader

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	MingWah
Model Number	Mobile NFC Card Reader

Mobile NFC Card Reader
1)13.56Mhz NFC tag reader
2)Portable bluetooth rfid reader
3)Mini USB

Mobile NFC Card Reader

Why do you choose us?

&15 years experience in RFID field

&Experienced in RFID software and hardware

&Timely delivery, competitive price and free sample for test

1. Brief Description:

Mobile NFC Card Reader

1) 125khz LF and 13.56mhz HF with USB interface
2) TK/EM,MF ,Ultralight, I CODE 2 card reader
3) Android bluetooth reader
4) Free SDK

2.Performance Characteristics:

Basic Parameters
Model		Bluetooth Reader & Writer MS-87D
Dimensions		80.5mm X 52.5mm X 5.5mm
Operating temp		-10°C to +50°C
Interface		USB
Wireless communication		Bluetooth
Power Supply		USB
Indicators		Buzz LED indicator: charging indicator light With low battery, LED light or buzz is active.
Protection		Equipped with over-charge protection, over-discharge protection and short-circuit protection
RFID Parameters
HF
Frequency Range	13.56Mhz
Protocols	ISO14443A/ISO15693
Cards supported	ISO14443A cards, such as MF 1K/4K, Desfire, Ultralight, Ultralight C, CPU card, and ISO15693 cards, such us I CODE 2 etc.
Read Range	>7cm, depend on the installation site and the antenna
LF
Frequency Range	125Khz&134.2Khz
Protocols	ISO11784/11785
Cards supported	ISO11784/11785 cards, such as TK4100,EM4200,T5577

3. Contact Detail:

Address	Yinhe Building, 2008 Xinluo str. High-tech District, Jinan 250101 Shandong Province, China
Office	0086-531-66955507
Skype	h.rfidtag10

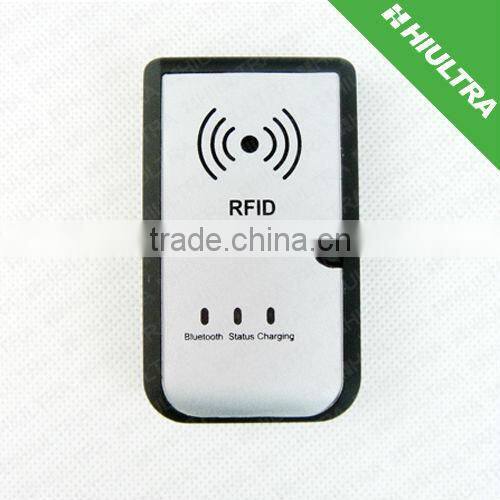

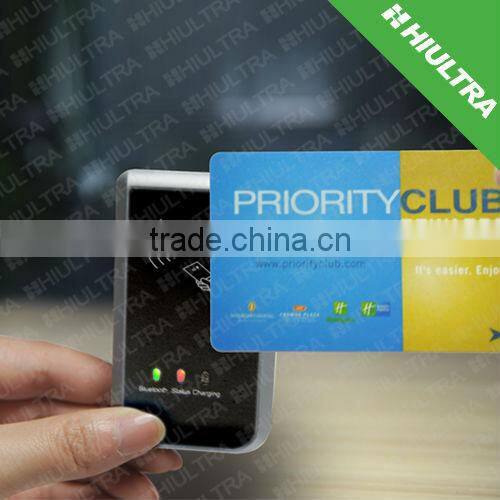

4.Product detail picture:
