100% Pure Virgin Tube Raw Material Ptfe Dispersion
US$ 0.7 - 8.8
/ Meter
300 Meters(Min. Order)
- Ningbo/shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SAE 100R14 PTFE Pipe, PTFE Lined Pipe, PTFE Pipe With Stainless Steel Cover
-
Best Selling PTFE Tubing, PTFE Tubing With Stainless Steel Braided
-
3/4" Sae100 r4 Hydraulic Suction Rubber Hose
-
1" SAE 100r14 High Pressure PTFE Hydraulic Hose
-
3/8" ~ 2" Steel Wire Spiral SAE 100r12 Hydraulic Hose
-
High Pressure Hydraulic Rubber Hose for Machine Tool and Eng
Product Details
| Place of Origin | Zhejiang, China | Brand Name | PASSION | |
| Model Number | SAE 100R14 | Material | Other, PTFE | |
| Specification | 1/8''-2'' | Length | 50M/100M | |
| Thickness | 0.5MM-1MM, 0.5mm-1mm | Standard | SAE 100R14 |
Product Description
Product Description

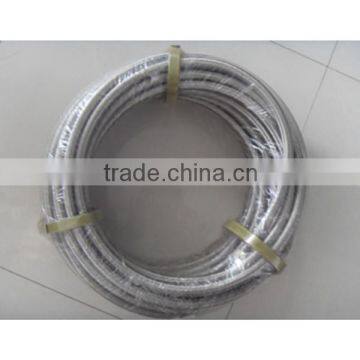

The PTFE Tube has a PTFE inner liner with 308 stainless steel braid. It is durable and professional hose that resists leaks and fumes. It is rated up to 3000 psi. This hose is suitable for brake and power steering lines.
- Stainless steel outer cover for excellent abrasion resistance
- Recommended for brake, E85, Alcohol, transmission, clutch, nitrous, power steering, oiling, hydraulics & vacuum applications
- Minimum temperature -70°C, Maximum temperature 250°C
| Product Code | Nominal ID | OD | Thickness | Pres. Work. | Pres.Burst. | Rdius Curve |
| mm | mm | bar | bar | mm | ||
| STH-03 | 3/16"(4.8mm) | 7.6 | 1.4 | 206 | 828 | 50 |
| STH-04 | 1/4"(6.35mm) | 9.5 | 1.57 | 206 | 828 | 75 |
| STH-05 | 5/16"(7.94mm) | 10.9 | 1.48 | 172 | 692 | 100 |
| STH-06 | 3/8"(9.5mm) | 12.8 | 1.65 | 138 | 552 | 125 |
| STH-08 | 1/2"(12.7mm) | 16.3 | 1.8 | 120 | 484 | 165 |
| STH-10 | 5/8"(15.9mm) | 19.2 | 1.65 | 103 | 416 | 187 |
| STH-12 | 3/4"(19mm) | 22.6 | 1.78 | 69 | 276 | 212 |
| STH-16 | 1"(25.4mm) | 30.9 | 2.75 | 69 | 276 | 225 |
Ideal for industrial, as well as home use
Every PTFE tube is hand inspected, so quality is always top of the line
Packaging & Shipping
Company Information
FAQ
Q1. Do you produce smooth or cloth wrapped cover?
A. We can produce both cover, according to your request.
Q2. Can you produce the products with our logo?
A. Yes, OEM services is available.
Q3. Are you a trade company of a factory?
A. We are a factory, welcome to visit our factory.
Q4. How long does my order take to be delivered?
A. Depends on the quantity of your order.(Usually 35 days for a 20' container)
