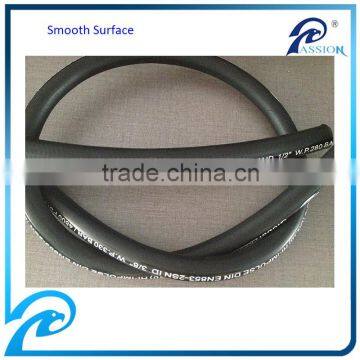

SAE 100R2 /2SN Fabric Surface/Smooth Surface Hydraulic Rubber Hose
- 10000 Meter / Meters per Month
- SHANGHAI/NINGBO
- T/T Credit Card PayPal
You May Like
-
304 Stainless Steel Braided Smooth Surface PTFE Hoses
-
3/16" SAE 100r6 Rubber Hydraulic Hose with Single Braided Fiber
-
High Pressure SAE 100r1 Rubber Hydraulic Hose
-
4" SAE 100r4 Steel Wire Helix Hydraulic Suction Hose
-
Good Quality Stainless Steel 304 Braided Covered PTFE Hydraulic Hoses
-
1" SAE 100r2/2sn Rubber Hydraulic Hose for Washing Machine
Product Details
| Place of Origin | Zhejiang, China | Brand Name | PASSION | |
| Model Number | SAE 100R2 |
Product Description
SAE 100R2 AT/EN853 2SN(cloth wrapped surface)
Construction: Tube: NBR synthetic rubber.
Reinforcement: Two layers of high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black.
Application: Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool, agricultural applications etc.
Standard length: 100m, 50m, 40m, 20m.
Specification:
Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m | |
R1-05 | 3/16 | 4.8 | 12.3 | 414 | 6000 | 1655 | 24000 | 100 |
| 0.32 |
R1-06 | 1/4 | 6.4 | 15.5 | 400 | 5800 | 1600 | 23200 | 100 | 0.0514 | 0.37 |
R1-08 | 5/16 | 8.0 | 16.5 | 350 | 5075 | 1400 | 20300 | 100 | 0.0612 | 0.412 |
R1-10 | 3/8 | 9.5 | 19.5 | 331 | 4800 | 1324 | 19200 | 100 | 0.0784 | 0.53 |
R1-13 | 1/2 | 12.7 | 22.5 | 276 | 4000 | 1103 | 16000 | 100 | 0.0833 | 0.64 |
R1-16 | 5/8 | 16.0 | 25.5 | 250 | 3630 | 1001 | 14520 | 50 | 0.074 | 0.77 |
R1-19 | 3/4 | 19.0 | 29.5 | 215 | 3120 | 860 | 12480 | 50 | 0.0833 | 0.96 |
R1-25 | 1 | 25.4 | 38.1 | 165 | 2400 | 662 | 9600 | 50 | 0.1445 | 1.35 |
R1-32 | 1 1/4 | 32.0 | 48.0 | 125 | 1820 | 502 | 7280 | 20 | 0.209 | 2.05 |
R1-38 | 1 1/2 | 38.0 | 55.0 | 90 | 1310 | 361 | 5240 | 20 | 0.2509 | 2.511 |
R1-51 | 2 | 50.8 | 68.6 | 80 | 1160 | 320 | 4640 | 20 | 0.3796 | 3.165 |
* Hangzhou Paishun Rubber and Plastic Co.,Ltd is a company that specialized in manufacturing various Rubber Hoses, Rubber Products,Rubber Fittings and Hydraulic Hose Assembly.
*Established in 2000
* Most of our products get TS16949 certification and ROHS certification.
Dear Sir, if you are interested into, please contact our sales team, we will contact you ASAP.
