Home > Products > 75ohm coaxial cable > RG59 with power cable

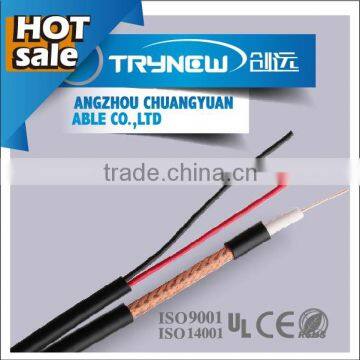

RG59 with power cable
US$ 0.1 - 1
/ Meter
5000 Meters(Min. Order)
- SHANGHAI/NINGBO
- T/T
You May Like
-
Good quality and competitive price coaxial cable rg11 specifications
-
Factory Price Rg11 Cctv Cablesatellite Meter Alarm Cable
-
RG11 CATV Coaxial RF Cable PVC PE
-
Import cheap goods from china rg6 rg59 rg11 lan cable cat5e
-
Copper Clad Steel (CCS) Inner Conductor 75 ohm RG11 Coaxial Cable
-
Factory directly wholesale rg6 rg58 rg11 rg59 coaxial cable price
Product Details
| Place of Origin | China | Brand Name | CHUANGYUAN/OEM | |
| Model Number | RG59 with power cable | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
1) Construction | |||
Center Conductor: | 0.574±0.01mm CU/CCS | ||
Dielectric: | 3.71±0.05mmSolid PE | ||
Shield: |
| ||
Braid Coverage: | 90%BC/CCA | ||
Jacket: | 6.15±0.1mm PVC | ||
Power cable: | 7*0.38/24*0.2/CCA/CU red and black power cable | ||
Jelly/APD | Per Customer’ Special Requirement | ||
2) Characteristics | |||
Sparker Test: | 4000VAC | ||
Impedance: | 75±3 Ohm | ||
Capacitance: | 67±3pF/m | ||
Velocity of Propagation: | 66% | ||
Return Loss: | 22dB min (50-300MHz) | ||
20dB min (300-1000MHz) | |||
Attenuation | [@68o F. (20o C.)] | ||
Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) | |
10 | 1.07 | 3.50 | |
100 | 3.40 | 11.00 | |
400 | 7.32 | 24.00 | |
1000 | 11.59 | 38.00 | |
2000 | 18.30 | 60.00 | |
3000 | 23.79 | 78.00 | |
