Home > Products > 75ohm coaxial cable > rg11 coaxial cable

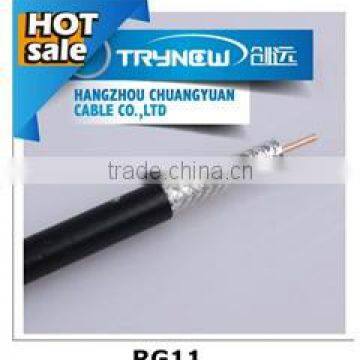

rg11 coaxial cable
- SHANGHAI/NINGBO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CHUANGYUAN/OEM | |
| Model Number | RG11 | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
HIGH QUALITY CUSTOMZIED COAXIAL CABLE
RG6
) Construction | ||
Center Conductor: | 1.02±0.01mm CU/CCS | |
Dielectric: | 4.57±0.1mmFoam PE | |
Shield: | Al Foil | |
Braid Coverage: | 40%-95%Al-Mg | |
Shield: | Al Foil | |
Braid Coverage: | 40%-95%Al-Mg | |
Jacket: | 7.62±0.1mm PVC/PE | |
UL: | CMX, CM, CATV, CL2 | |
Jelly/APD | Per Customer’ Special Requirement | |
2) Characteristics | ||
Sparker Test: | 4000VAC | |
Impedance: | 75±3 Ohm | |
Capacitance: | 50±3pF/m | |
Velocity of Propagation: | 85% | |
Return Loss: | 20dB min (5-1000MHz) | |
Attenuation | [@68o F. (20o C.)] | |
Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
5 | 0.58 | 1.9 |
55 | 1.6 | 5.25 |
187 | 2.85 | 9.35 |
300 | 3.55 | 11.64 |
450 | 4.4 | 14.43 |
600 | 5.1 | 16.73 |
750 | 5.65 | 18.54 |
865 | 6.1 | 20.01 |
1000 | 6.55 | 21.49 |
RG11
1) Construction | ||
Center Conductor: | 1.63±0.01mm CU/CCS | |
Dielectric: | 7.11±0.1mmFoam PE | |
Shield: | Al Foil | |
Braid Coverage: | 40%-95%Al-Mg | |
Jacket: | 10.16±0.1mm PVC/PE | |
Jelly/APD | Per Customer’ Special Requirement | |
2) Characteristics | ||
Sparker Test: | 4000VAC | |
Impedance: | 75±3 Ohm | |
Capacitance: | 50±3pF/m | |
Velocity of Propagation: | 85% | |
Return Loss: | 20dB min (5-1000MHz) | |
Attenuation | [@68o F. (20o C.)] | |
Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
5 | 0.38 | 1.25 |
55 | 0.96 | 3.15 |
250 | 2.05 | 6.72 |
300 | 2.25 | 7.38 |
450 | 2.75 | 9.02 |
600 | 3.18 | 10.43 |
750 | 3.65 | 11.97 |
865 | 3.98 | 13.05 |
1000 | 4.35 | 14.27 |
75 OHMS
RG59 RG6 RG59/RG6 with power RG11
50 OHMS
RG58 RG213 RG214 8D-FB
Length: 100m/200m/305m/500m, according to your requirements;
Packing: coil/ paper reel/plastic reel/wooden durm, ect.
1.OEM Available
2.ISO9001/CE/RoHS Approved
3.Good quality with best service
4.Free Sample
5.Fast delivery
