Home > Products > 100ohm lan cable > twisted pair cable CAT5E UTP cable made in p.r.c.100ohm lan cable

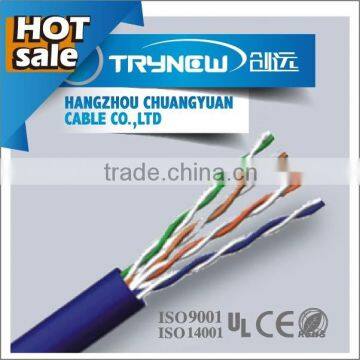

twisted pair cable CAT5E UTP cable made in p.r.c.100ohm lan cable
Negotiable
/ Kilometer
10 Kilometers(Min. Order)
- NINGBO/SHANGHAI
- T/T
You May Like
-
China cable factory high quality low voltage 4 pair 23awg cat 6 utp cable
-
China cable factory high quality low voltage utp cat6 krone patch cable
-
China cable factory high quality low voltage d-link lan utp cable cat6 price
-
China cable factory high quality low voltage cat 6 utp cable specification
-
China cable factory high quality low voltage 300m cat6 utp network cable
-
China cable factory high quality low voltage amp cat6 network cable utp cable
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CHAUNGYUAN/OEM | |
| Model Number | CAT5 UTP | Type | Cat 5e | |
| Number of Conductors | 8 |
Product Description
Product Description
1) Construction | |||||||||||||
Center Conductor: | 0.51±0.01mm CU/CCA | ||||||||||||
Dielectric: | 0.95mm-0.92mm PE | ||||||||||||
No.of Pairs | 4 | ||||||||||||
Jacket: | 6.5±0.1mm PE | ||||||||||||
Remark: | Water Blocked Tape 100MHz | ||||||||||||
2) Characteristics | |||||||||||||
Sparker Test: | 1 | 4 | 8 | 10 | 25 | 31.25 | 62.5 | 100 | 155 | 200 | 310 | 350 | |
Impedance | 100±15 | 100±18 | 100±22 | ||||||||||
RL(dB) | 20 | 23 | 25 | 25 | 24 | 24 | 22 | 20 | 19 | 19 | 18 | 17 | |
Attenuation (dB/100m) | 2.0 | 4.1 | 5.8 | 6.5 | 10.4 | 11.6 | 17.0 | 22.0 | 28.1 | 32.4 | 41.8 | 44.9 | |
NEXT (dB/100m) | 65.3 | 56.3 | 51.8 | 50.3 | 44.3 | 42.9 | 38.4 | 35.3 | 33.0 | 31.0 | 28.0 | 27.0 | |
ELFEXT (dB/100m) | 63.8 | 51.7 | 45.7 | 43.8 | 35.8 | 33.9 | 27.8 | 23.8 | 20.0 | 18.0 | 14.0 | 13.0 | |
PS NEXT (dB/100m) | 62.3 | 53.3 | 48.8 | 47.3 | 41.3 | 39.9 | 35.4 | 32.3 | 29.0 | 28.0 | 25.0 | 24.0 | |
PS ELFEXT (dB/100m) | 60.8 | 48.7 | 42.7 | 40.8 | 32.8 | 30.9 | 24.8 | 20.8 | 17.0 | 15.0 | 11.0 | 10.0 | |
Packaging & Shipping
305/1000ft/Pull Box 2Box/Carton
Our Services
1.OEM Available
2.ISO9001/CE/RoHS Approved
3.Good quality with best service
4.Free Sample
5.Fast delivery
