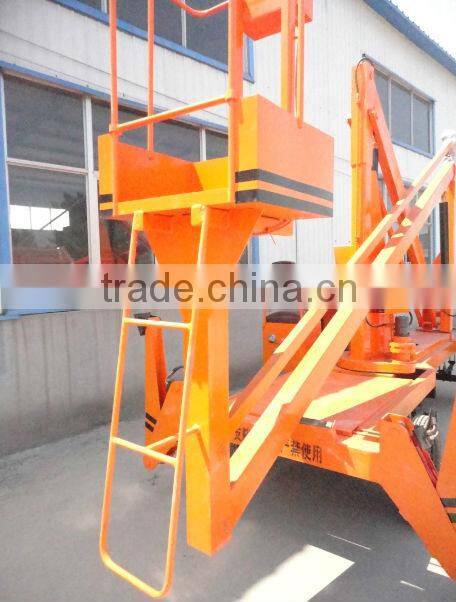

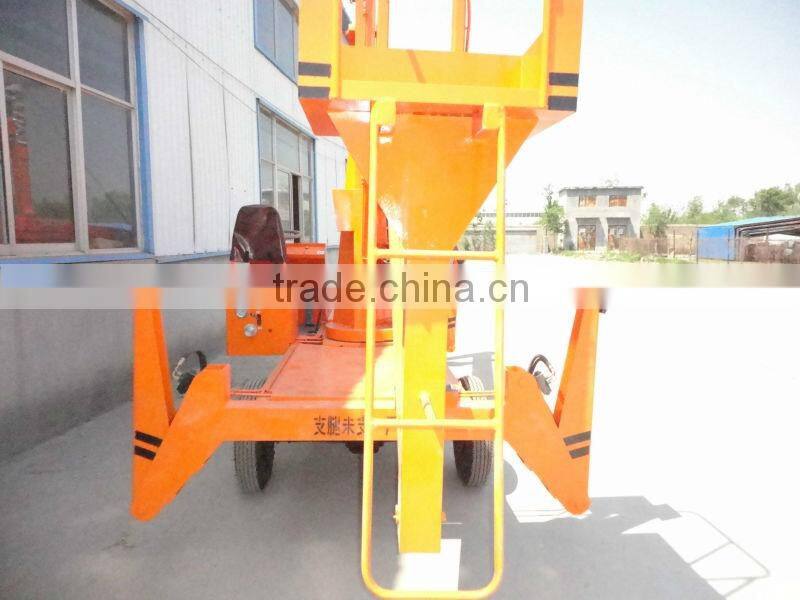

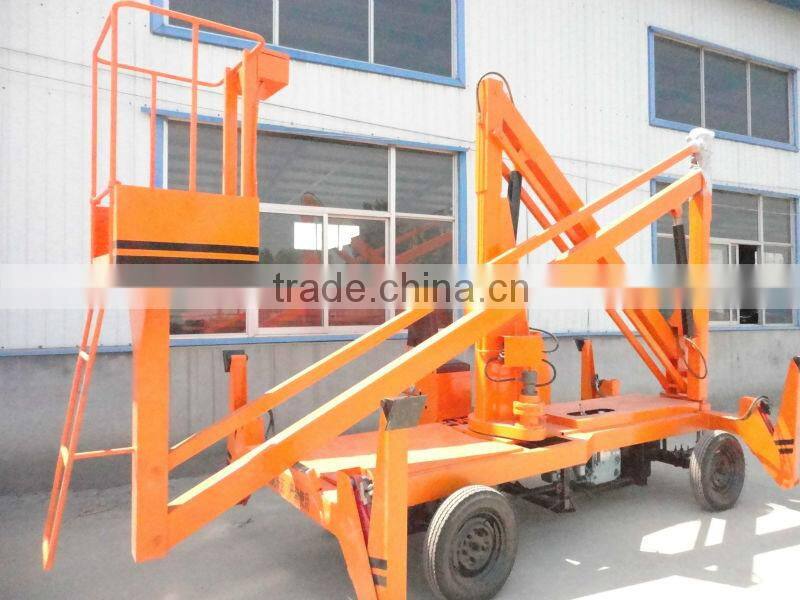

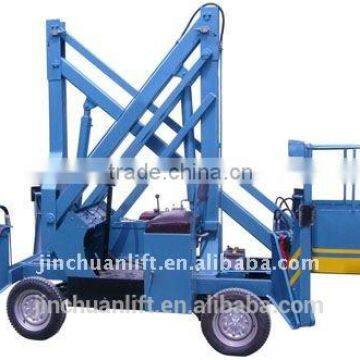

Hydraulic Trailer Boom Lifts
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hydraulic Mobile Boom Lift / Crank Arm Lift Platform
-
Hydraulic Rotating Boom Carry Lift Table for 360 Degrees of Rotation
-
Articulate Aerial Boom Lift
-
2013 New Design Boom Lift for Street Light Maintenance Lifting 10m
-
Hydraulic Self Propelled Rotating Boom Lift Equipment
-
Hydraulic Rotating Crank Lift Table
Product Details
| Place of Origin | Shandong, China | Brand Name | Jinchuan | |
| Model Number | CKT-11.5 | Lift Mechanism | Other, crank lift | |
| Lift Drive / Actuation | Hydraulic | Power | 2.2kw | |
| Rated Loading Capacity | 150kg | Min. Lifting Height | 3m | |
| Max. Lifting Height | 12m | Table Size | 700*900mm | |
| Overall Dimensions | 5460*1950*1800mm | Weight | 1500kg | |
| Certification | ISO9001 | Warranty | one year |
Product Description
Specifications
hydraulic trailer boom lifts1 height:10.5,12,13m
2 diesel and batteri power
3 can be dirven
4 can 360 turn working radi
hydraulic trailer boom lifts
1 battery driven, very environment-friendly, be self-propelled, lift automatically, be operated both in the up platform and down, work without any noise, be continuous to work for 6-8 hours.

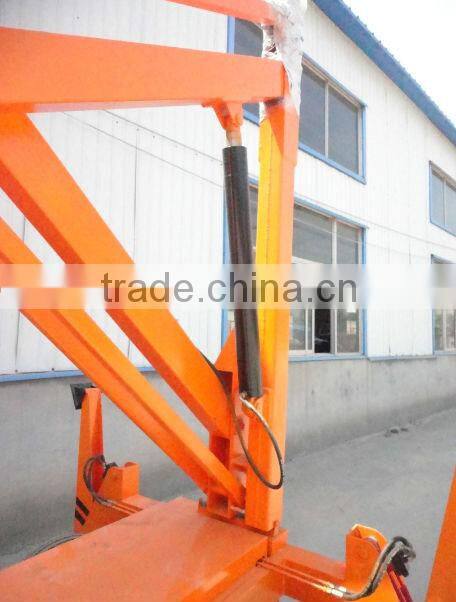

2 With articulating boom structure, be rotary to 360°, having the special function which scissors type and telescope type have not --to work across the obstacles.

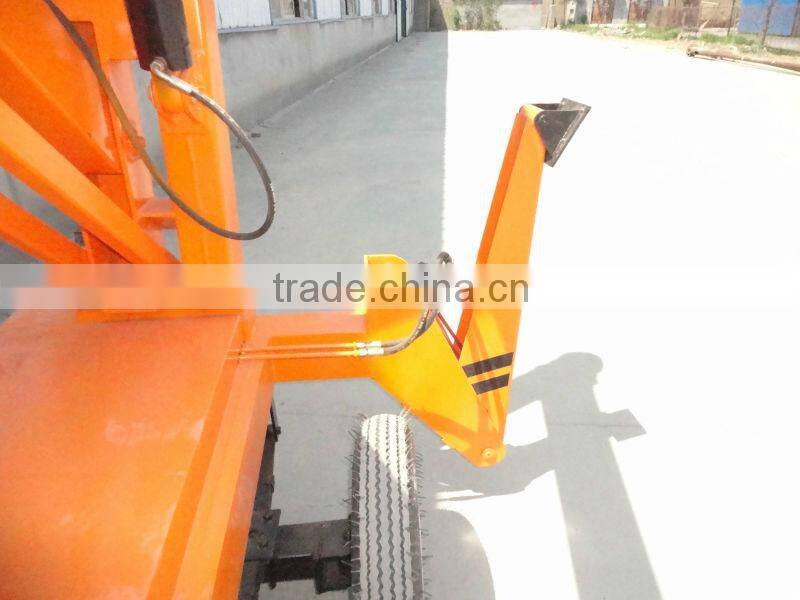

3 With 4 full-automatic hydraulic outriggers to support the balance of whole machine, equipped with the security system in case of emergency.
4 Available for 2 persons working ,Widely used for cleaning the windows, installing and maintaining of the lights, decorating and repairing of the factory house, and some other operations of high-altitude.
CKT Self-propelled articulated work platform | |||||
Item | CKT-8 | CKT-10.5 | CKT-12.5 | CKT-13.5 | |
Lifting height(m) | 8 | 10.5 | 12.5 | 13.5 | |
Max.Working height(m) | 9 | 11.5 | 13.5 | 14.5 | |
Operating radius(m) | 3 | 3.4 | 3.4 | 4 | |
Rottate degrees | 360 | ||||
Capacity(kgs) | 200 | ||||
Platform size(m) | 0.7*0.55 | ||||
Overall dimension(m) | 3.5*1.7*2.9 | 3.7*1.9*2.9 | 5.1*1.95*2.95 | 5.3*1.95*3.3 | |
Drive power | Diesel | ||||
Storage battery | |||||
Lifting spped | Up | 0.05-0.09m/s | |||
Down | 0.05-0.09m/s | ||||
Mobile speed | 15-30Km/h | ||||
Withstand wind | no more than force 5 wind | ||||
Net weight(kgs) | 1700 | 1800 | 2000 | 2200 | |
