Home > Products > crank arm boom lift platform > Folding Work Platform
Folding Work Platform
US$ 5,000 - 20,000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T
You May Like
-
360 Degree Rotation Elevator
-
Crank Lift Car
-
Outdoor Wheelchair Lift Electric Disabled Lift Home Use
-
Wheelchair Lift/Hydraulic Lift for Disabled People/home Disabled Elevator
-
Home Elevator Wheelchair Lift Platform Portable Lift Platform for Disabled
-
350kg 1.5m,2m,2.5m,3m,3.5m,4m,4.5m,5m Hydraulic Disabled Electric Wheelchair Lift/wheelchair Disabled Elevator
Product Details
| Place of Origin | Shandong, China | Brand Name | Jin-chuan | |
| Model Number | GTBZ | Lift Mechanism | Other, crank lift | |
| Lift Drive / Actuation | Hydraulic | Power | 2.2KW | |
| Rated Loading Capacity | 3T | Min. Lifting Height | 8M | |
| Max. Lifting Height | 12M | Table Size | 1300*700MM | |
| Overall Dimensions | 5460*1950*1800MM | Weight | 1500KG |
Product Description
Specifications
1.High-quality structural steel,2.single-sided double-sided molding process welding
3.steady lifting, carrying capacity.
High-quality structural steel, single-sided double-sided molding process welding, imported or domestic joint venture pump station pump stations, lift aerial work platform is equipped with balancing valves, automatic packing and other safety devices, the platform safe and reliable and durable. The series lifts with mobile and flexible, steady lifting, carrying capacity, easy to operate,

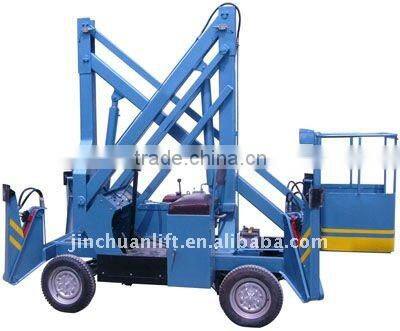

GTBZ Articulated aerial platform
Model Item Unit
|
GTBZ10B |
GTBZ11B |
GTBZ12B |
GTBZ13B |
Maximum operating altitude(m)
| 10 | 11 | 12 | 13 |
Maximum operating rate(m)
| 3.0 | 3.4 | 4.2 | 4.6 |
Platform rated load(kg)
| 200 | 160 | 160 | 160 |
Boom lifting speed (m/s) | 0.04-0.07 | 0.04-0.07 | 0.04-0.07 | 0.04-0.07 |
Boom swing angle (Degree) | 360° | 360° | 360° | 360° |
Hydraulic system working pressure
| 10 | 10 | 10 | 10 |
|
|
|
|
|
Engine power(hp)
| 12 | 12 | 12 | 12 |
Supply voltage(V)
| 12 | 12 | 12 | 12 |
Foot Type
| hydraulic support | hydraulic support | hydraulic support | hydraulic support
|
Operation
| both up and down | both up and down | both up and down | both up and down |
Wind resistance
| ≤6X | ≤6X | ≤6X | ≤6X |
Weight(kg)
| 1100 | 1700 | 1850 | 1960 |
Dimensions (mm) | 2800*1200*2600 | 3500*1600*2750 | 5200*1950*2750 | 5600*1950*2750 |
