Home > Products > crank arm boom lift platform > GTZ trailer lift platform

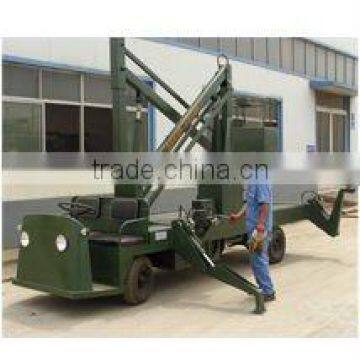

GTZ trailer lift platform
- 200 Set / Sets per Month
- qingdao
You May Like
-
self-propelled boom lifters
-
hydraulic lifter price best price
-
6-13m aearticulation lifter/portable hydraulic lifter
-
hydraulic arm lift platform hydraulic arm lift ,crank lift platform,self propelled articulated cherry picker with CE 2014
-
Hydraulic mounted crank lift platforms
-
GKT series diesel engine crank arm type working lifting platform
Product Details
Place of Origin | Shandong, China | Brand Name | JInchuan | |
Lift Mechanism | Telescoping Lift | Lift Drive / Actuation | Hydraulic | |
Power | According to the customer demand | Rated Loading Capacity | According to the customer demand | |
Min. Lifting Height | According to the customer demand | Max. Lifting Height | According to the customer demand | |
Table Size | According to the customer demand | Overall Dimensions | According to the customer demand | |
Weight | According to the customer demand | Certification | CE | |
Warranty | 1 year |
Product Description
Specifications
best pricesimple operation
convenient use
can rotate 360 degrees to work
hydraulic crank lift for sale
1. Introduce
---It is used for maintenance or aerial work, can also move a short distance..
--- One person drive and another person operate on the platform.
---It can move upside and down automatically, be operated both in the up basket and down drive seat
2. Advantages
---Two sources of power:Storage battery and Diesel engine.And the storage battery works without noise.
--- With four full-automatic hydraulic legs,it can be more stable.
---Boom rotation 360°, so it can work across the barriers.
3. Model list
Model | GTZ-10.5 | GTZ-12 | GTZ-13 | GTZ-14 |
height(m) | 10.5 | 12 | 13 | 14 |
Platform height (m) | 9 | 10.5 | 11.5 | 12.3 |
Max.horizontal extent(m) | 3 | 3.4 | 4 | 4 |
Rotation | 360° | 360° | 360° | 360° |
Platform capacity(kg) | 200 | 200 | 200 | 200 |
Size (mm) | 3500×1700×2900 | 3900×1900×2600 | 3900×1950×3000 | 4800×2000×3100 |
Total weight(kg) | 1600 | 1900 | 2000 | 2200 |
Lifting speed(m/s) | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 |
Work pressure(kpa) (Mpa) | 10 | 10 | 10 | 10 |
Travel speed(km/h) | 15-30 | 15-30 | 15-30 | 15-30 |
Wind-proof | ≤5 | ≤5 | ≤5 | ≤5 |
4. Here are some products display.
5.about our factory:
6.24hour for your service
