T35-9 high flow ventilation fan Axial flow fan

FOB Price

USD $35 - $500 / Set

2 Sets(Min.Order)

Supply Ability 3000 Set / Sets per Month
Port ShangHai
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Mounting	Duct Fan
Blade Material	Other, Steel	Place of Origin	Jiangsu, China
Brand Name	JN axial flow fan	Model Number	T35-9 axial flow fan
Voltage	440V/380V/220V	Power	1.5-4 Kw
Air Volume	16560-33937 m³/h	Speed	>5m/s
Certification	CE, Other, CE, ISO9001:2008

Product Description

T35-9 Axial Flow Fan/high flow ventilation fan

Product Description

T35-11 axial-flow fan are products to replace 30K4 products. Based on analysis and comparation with the similar products abroad, through optimized design, the structure of the impeller is confirmed. The motor is improved and the loss of air flow is reduced. Therefore, the efficiency of the fans is 89.5% higher when the noise is 3.6dB lower than Noise A standard. We strengthen the welding of blades and impeller so that the blades can avoid breaking. The T35 series axial fan is divided into 5 kinds of blade installation angle such as 15°,20°,25°,30°, 35°.

T35 type Axial Fan is widely used in factories, warehouses, offices, residential houses to ventilate or enhance heat dissipation. It is also series installed in longer pipe line. The air transferred shall not be corrosive with notable dust, the temperature of the air should not exceed 60°C.

The main technical parameters of T35 axial flow fan:

Machine No.	Rotation Speed r/min	Volume Flow m³/h	Pressure Pa	Motor Power kw
2.8	2900	1224-2778	128-141	0.12-0.37
2.8	1450	113-1392	32-46.6	0.025-0.04
3.15	2900	1944-4155	170.1-247	0.18-0.55
3.15	1450	972-2078	42.5-61.7	0.025-0.09
3.55	2900	2783-5951	216.1-313.6	0.37-1.1
3.55	1450	1394-2981	54-78.4	0.04-0.12
4	2900	3980-8500	274.3-398.2	0.75-2.2
4	1450	1993-4261	68.6-99.5	0.09-0.25
4.5	1450	2832-6067	86.8-126	0.12-0.37
5	1450	0.12-0.37	112.6-164.6	0.025-0.75
5	960	2839-5768	49.1-71.8	0.37
5.6	1450	6025-12239	140.9-206	0.37-1.1
5.6	960	3989-8103	61.8-90.3	0.37
6.3	1450	8579-17426	178.3-260.7	0.75-2.2
6.3	960	5680-11534	78.2-114.3	0.37-0.75
7.1	1450	12280-24944	226.5-331.1	1.5-4
7.1	960	8130-17320	99.3-145.2	0.75-1.1
8	1450	17567-35682	287.6-420.3	3-7.5
8	960	11630-23624	126.1-184.2	0.75-2.2
9	960	16560-33937	159.5-233.2	1.5-4
10	960	22716-46141	197-287.9	2.2-7.5
11.2	960	31914-64825	247-361.1	4-11

Certificate:ISO9001:2008,CE

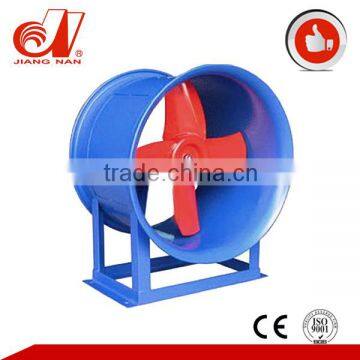

Pictures of T35 axial fan:

Our factory and outgoing pictures:
