turbo air ventilation fan air ventilator air fans
- 1000 Set / Sets per Month
- ShangHai
- T/T D/P D/A Credit Card
You May Like
-
automatic shutter ventilating fan blower with electric motor outboard
-
air blower fans air ventilation blower fan
-
centrifugal fan rpm ventilation air ventilator
-
blower fans mine ventilation fan poultry fan big air ventilator
-
small ventilation fan rpm ventilation blower fan
-
air blowers fans rpm ventilation air ventilation
Product Details
| Electric Current Type | AC | Blade Material | Other, Aluminum | |
| Mounting | Free Standing | Place of Origin | Jiangsu, China | |
| Brand Name | JN(JiangNan) | Model Number | 7-11 | |
| Power | 1.5-5.5 Kw | Voltage | 380V/440V/3KV/6KV | |
| Air Volume | 460-900 m3/h | Speed | >20m/s | |
| Certification | CCC | After-sales Service Provided | No overseas service provided |
Product Description

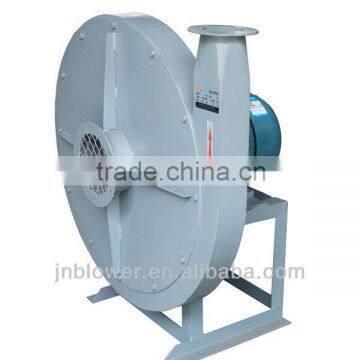

turbo air ventilation fan air ventilator air fans
Model 7-11 centrifugal fan, the general and high-pressure blower is widely used in fuel atomization,film processor,splitting machine,etc.It has the features of high efficiency, high pressure, easy installation etc.
We have years of experience in providing centrifugal fan solutions. Emails for enquiry are warmly welcomed, we are always at your service. We will provide corresponding solutions according to the requirements of all our customers.
the main parameters :
No. | Output (Kw) | Voltage (v) | Rotation Speed (r/min) | Volume Flow(m³/h) | Total Pressure(Pa) | Noise <(dB) |
|
| |||||||
7-11-1 | 1.5 | 380 | 2840 | 460 | 3485 | 74 |
|
7-11-2 | 2.2 | 380 | 2840 | 545 | 4100 | 78 |
|
7-11-3 | 3 | 380 | 2840 | 640 | 4775 | 80 |
|
7-11-4 | 4 | 380 | 2840 | 700 | 5495 | 84 |
|
7-11-5 | 5.5 | 380 | 2900 | 900 | 6465 | 86 |
|
we can customize the centrifugal fan according to the specified requests.
Certificates:ISO9001:2008,CE
Our factory and outgoing pictures:
