DCBF-500 backward curved impeller fan commercial extractor fans air extractor fan

FOB Price

US$ 60 - 880 / Set

2 Sets(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Blade Material	Cast Iron
Mounting	Free Standing	Place of Origin	Jiangsu, China
Brand Name	JN	Model Number	DCBF-500
Power	2.2-5.5 kw	Voltage	220V/380V/415V/440V
Air Volume	4690-17200 CMH	Speed	m
Certification	CE	After-sales Service Provided	No overseas service provided

Product Description

DCBF-500 backward curved impeller fan commercial extractor fans air extractor fan

Product Description

Backward wheel, frame construction, filled with sound absorption material. Big air-volume, high pressure, high efficiency. Use:in ventilation, lampblack extraction and fire-protection smoke extraction.

The main technical parameters of DCBF air conditioning fan:

Model(No.)	Power (Kw)	Rotation Speed (r/min)	Volume Flow (m³/h)	Total Pressure (Pa)	Noise (dB)
315	1.1-4	2000	2250-5250	450-750	<69
	1.5-2	2300	2170-4950	550-950	<71
	2.2-2	2400	2350-5200	650-1060	<74
	3-2	2800	2750-6200	870-1450	<76
355	1.5-4	1800	2850-6600	450-770	<72
	2.2-4	2000	3150-7400	560-950	<75
	3-2	2300	3550-8450	650-1250	<78
	4-2	2400	3870-8800	800-1360	<79
400	1.5-4	1400	3300-7600	380-650	<75
	2.2-4	1600	3850-8700	490-850	<76
	3-4	1800	4250-9750	630-1060	<79
	4-2	2000	4750-10900	760-1350	<81
450	2.2-4	1400	4650-10750	480-820	<76
	3-4	1600	5250-12500	620-1050	<78
	4-4	1700	5750-13500	760-1200	<80
	5.5-2	1800	6170-13850	790-1320	<83
500	2.2-4	1000	4690-10850	310-550	<75
	3-4	1200	5650-13200	430-740	<77
	4-4	1400	6550-15200	590-990	<79
	5.5-4	1600	7550-17200	770-1320	<82
560	4-4	1100	7900-16600	460-760	<78
	5.5-4	1200	8650-18200	540-900	<81
	7.5-4	1400	10200-18100	740-1220	<83
	11-4	1600	11500-24100	970-1570	<85
630	5.5-4	1000	9450-21100	490-820	<80
	7.5-4	1200	11100-25800	690-1160	<82
	11-4	1300	12100-28100	810-1370	<85
	15-4	1400	13050-30200	940-1590	<87
710	7.5-4	900	11800-27600	490-840	<81
	11-4	1000	13100-31100	600-1100	<84
	15-4	1200	15850-36100	870-1500	<86
	18.5-4	1300	16900-40200	1060-1700	<88
800	11-4	900	17550-40500	700-1200	<83
	15-4	1000	18100-42100	780-1300	<85
	18.5-4	1100	20150-46100	940-1550	<87
	22-4	1200	21600-50200	1120-1900	<88
	30-4	1300	23400-54700	1300-2190	<90
900	18.5-4	900	23700-55100	770-1320	<87
	22-4	950	25100-58100	860-1460	<88
	30-4	1000	26100-61100	960-1650	<90
	37-4	1080	28050-66100	1100-1900	<92

Certificate:ISO9001:2008

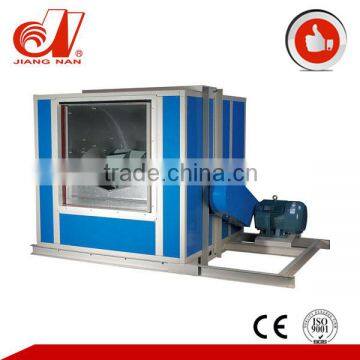

Pictures of DCBF series cetrifugal fan:
