Home > Products > axial flow fan > ac Centrifugal Fan Motor Speed Controller Industrial Exhaust Wall Fan
ac Centrifugal Fan Motor Speed Controller Industrial Exhaust Wall Fan
- ShangHai
- T/T D/P D/A Credit Card
You May Like
-
Industrial Turbo Exhaust Basement Ventilation Fan Wind Driven Ventilator
-
Smoking Room Exhaust Fan Wall Air Ventilation Fan Blower
-
Wall Exhaust Fan Shandong Province Extractor Fan Blade
-
Fan,ventilator Machine Price,examples Industrial Goods
-
1000mm Ducted Fan,factory Fan,boiler Fan
-
T35 Axial Flow Fan / Wall Mounted Exhaust Fan
Product Details
| Electric Current Type | AC | Mounting | Duct Fan | |
| Blade Material | Other, Steel | Place of Origin | Jiangsu, China | |
| Brand Name | JN | Model Number | T40-10 | |
| Voltage | 440V/380V/220V | Power | 5.5 Kw | |
| Air Volume | 42700 m³/h | Speed | >5m/s | |
| Certification | CCC | After-sales Service Provided | No overseas service provided |
Product Description
ac centrifugal fan motor speed controller industrial exhaust wall fan
The T40 series axial flow fans are low-pressure axial flow fans with simple structure and low noise. They are widely used in general industrial and mining enterprises, warehouses, offices, domestic building for ventilating and heat-air exhausting.
The main technical parameters of axial fan T40:
Machine No. |
Rotation Speed |
Motor Power |
Volume Flow |
Pressure |
Noise (dB(A)) |
2.5 | 2900 | 0.12 | 2009 | 149 | 70 |
1450 | 0.25 | 1012 | 37 | 56 | |
3 | 2900 | 0.37 | 3481 | 215 | 76 |
1450 | 0.09 | 1739 | 54 | 61 | |
3.5 | 2900 | 0.75 | 5519 | 292 | 80 |
1450 | 0.09 | 2761 | 74 | 65 | |
4 | 2900 | 1.5 | 8240 | 382 | 84 |
1450 | 0.25 | 4118 | 95 | 69 | |
5 | 1450 | 0.75 | 8050 | 149 | 75 |
960 | 0.25 | 5332 | 66 | 66 | |
6 | 1450 | 1.5 | 13900 | 66 | 66 |
960 | 0.75 | 9202 | 94 | 72 | |
7 | 1450 | 3 | 22100 | 294 | 81 |
960 | 0.75 | 14602 | 128 | 75 | |
8 | 1450 | 5.5 | 33001 | 381 | 83 |
960 | 1.5 | 21802 | 168 | 79 | |
9 | 960 | 1.5 | 22556 | 167 | 78 |
10 | 960 | 5.5 | 42700 | 262 | 82 |
...
Certificate:ISO9001:2008,CE

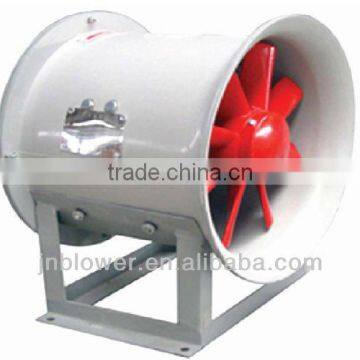

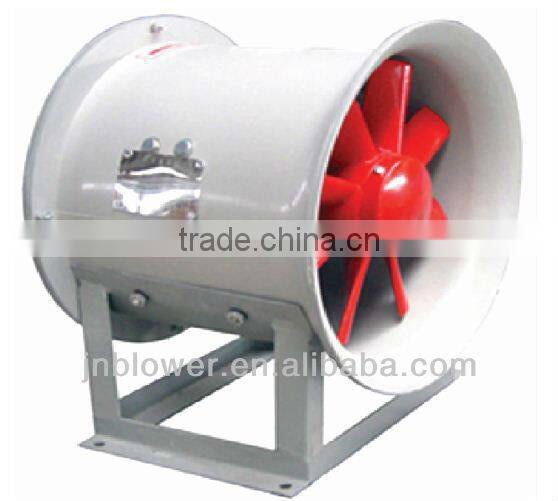

Pictures of T-40 axial fan:

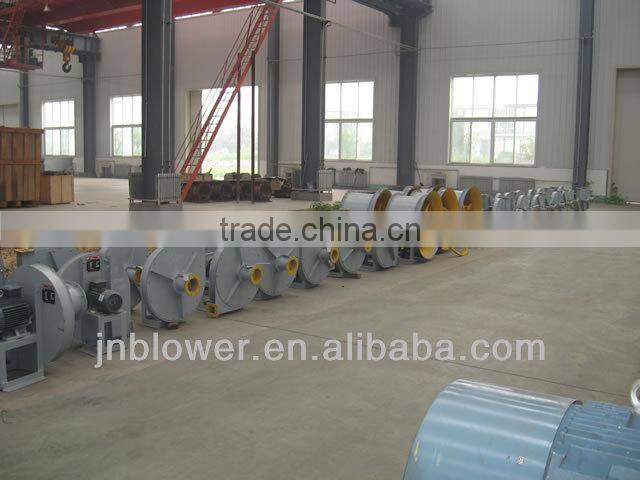

Our factory and outgoing pictures:
