Home > Products > Air conditioning fan > DCBF-800 backward curved counter centrifugal fanindustrial extractor fans commercial extractor fans
DCBF-800 backward curved counter centrifugal fanindustrial extractor fans commercial extractor fans
USD $60 - $880
/ Set
2 Sets(Min.Order)
- 6000 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
DCBF-710 backward curved counter centrifugal fan air intake fan axial air extractor fan
-
DCBF-630 backward curved impeller fan air intake fan axial air extractor fan
-
DCBF-560 backward curved impeller fan air intake fan axial air extractor fan
Quality Choice
-
DCBF-500 backward curved impeller fan commercial extractor fans air extractor fan
-
DCBF-450 backward curved counter centrifugal fanair intake fan industrial extractor fans
-
DCBF-400 backward curved counter centrifugal fan air extractor fanindustrial extractor fans
Product Details
| Electric Current Type | AC | Blade Material | Cast Iron | |
| Mounting | Free Standing | Place of Origin | Jiangsu, China | |
| Brand Name | JN | Model Number | DCBF-800 | |
| Power | 4-30kw | Voltage | 220V/380V/415V/440V | |
| Air Volume | 17550-50200 CMH | Speed | M | |
| Certification | CE | After-sales Service Provided | No overseas service provided |
Product Description
DCBF-800 backward curved counter centrifugal fanindustrial extractor fans commercial extractor fans
Product Description
Backward wheel, frame construction, filled with sound absorption material. Big air-volume, high pressure, high efficiency. Use:in ventilation, lampblack extraction and fire-protection smoke extraction.
The main technical parameters of DCBF air conditioning fan:
| Model(No.) | Power (Kw) | Rotation Speed (r/min) | Volume Flow (m³/h) | Total Pressure (Pa) | Noise (dB) |
| 315 | 1.1-4 | 2000 | 2250-5250 | 450-750 | <69 |
| 1.5-2 | 2300 | 2170-4950 | 550-950 | <71 | |
| 2.2-2 | 2400 | 2350-5200 | 650-1060 | <74 | |
| 3-2 | 2800 | 2750-6200 | 870-1450 | <76 | |
| 355 | 1.5-4 | 1800 | 2850-6600 | 450-770 | <72 |
| 2.2-4 | 2000 | 3150-7400 | 560-950 | <75 | |
| 3-2 | 2300 | 3550-8450 | 650-1250 | <78 | |
| 4-2 | 2400 | 3870-8800 | 800-1360 | <79 | |
| 400 | 1.5-4 | 1400 | 3300-7600 | 380-650 | <75 |
| 2.2-4 | 1600 | 3850-8700 | 490-850 | <76 | |
| 3-4 | 1800 | 4250-9750 | 630-1060 | <79 | |
| 4-2 | 2000 | 4750-10900 | 760-1350 | <81 | |
| 450 | 2.2-4 | 1400 | 4650-10750 | 480-820 | <76 |
| 3-4 | 1600 | 5250-12500 | 620-1050 | <78 | |
| 4-4 | 1700 | 5750-13500 | 760-1200 | <80 | |
| 5.5-2 | 1800 | 6170-13850 | 790-1320 | <83 | |
| 500 | 2.2-4 | 1000 | 4690-10850 | 310-550 | <75 |
| 3-4 | 1200 | 5650-13200 | 430-740 | <77 | |
| 4-4 | 1400 | 6550-15200 | 590-990 | <79 | |
| 5.5-4 | 1600 | 7550-17200 | 770-1320 | <82 | |
| 560 | 4-4 | 1100 | 7900-16600 | 460-760 | <78 |
| 5.5-4 | 1200 | 8650-18200 | 540-900 | <81 | |
| 7.5-4 | 1400 | 10200-18100 | 740-1220 | <83 | |
| 11-4 | 1600 | 11500-24100 | 970-1570 | <85 | |
| 630 | 5.5-4 | 1000 | 9450-21100 | 490-820 | <80 |
| 7.5-4 | 1200 | 11100-25800 | 690-1160 | <82 | |
| 11-4 | 1300 | 12100-28100 | 810-1370 | <85 | |
| 15-4 | 1400 | 13050-30200 | 940-1590 | <87 | |
| 710 | 7.5-4 | 900 | 11800-27600 | 490-840 | <81 |
| 11-4 | 1000 | 13100-31100 | 600-1100 | <84 | |
| 15-4 | 1200 | 15850-36100 | 870-1500 | <86 | |
| 18.5-4 | 1300 | 16900-40200 | 1060-1700 | <88 | |
| 800 | 11-4 | 900 | 17550-40500 | 700-1200 | <83 |
| 15-4 | 1000 | 18100-42100 | 780-1300 | <85 | |
| 18.5-4 | 1100 | 20150-46100 | 940-1550 | <87 | |
| 22-4 | 1200 | 21600-50200 | 1120-1900 | <88 | |
| 30-4 | 1300 | 23400-54700 | 1300-2190 | <90 | |
| 900 | 18.5-4 | 900 | 23700-55100 | 770-1320 | <87 |
| 22-4 | 950 | 25100-58100 | 860-1460 | <88 | |
| 30-4 | 1000 | 26100-61100 | 960-1650 | <90 | |
| 37-4 | 1080 | 28050-66100 | 1100-1900 | <92 |
Certificate:ISO9001:2008

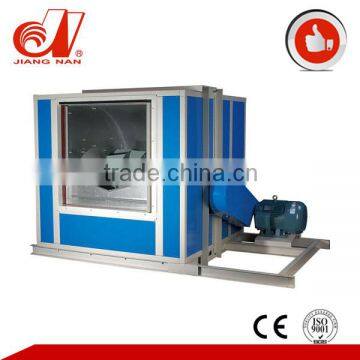

Pictures of DCBF series cetrifugal fan:
Company Information
Our factory and outgoing pictures:
...
Contact Us
- Wuxi Luoshe Jiangnan Fan Factory
- Contact nameCindy Peng Chat Now
- Phone86-510-83830221
- Address68# XinYa Street, LuoShe Town, Wuxi, Jiangsu
