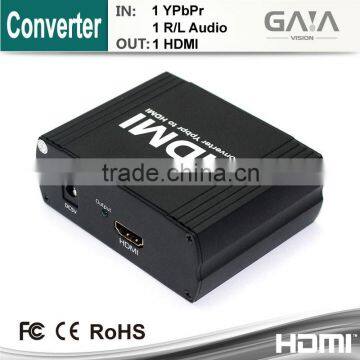

New Arrival YPbPr/Component Video to HDMI Converter

Our series of HDMI converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.

The HDCYUV0101 Converter use single YPbPr+R/L source,accessing to single HDMI1.1 sink.The Converter allows one YPbPr+R/L device to be converted easily to one HDMI1.1 monitor or projector.

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

lOne YPbPr+ R/L input signal convert to one HDMI sink device.

lSupport video input : Up to capture YPbPr1080p, 330M bandwidth,50/60Hz

lHDMI output : Support up to 1080p/60HZ, same format as input

lSupport CEC

lSupport audio format output : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

lLED indication: when source or sink is working, LED relative to is light.

lSupport output up to 20metres AWG26 cable length

lNo loss of quality

lInstalls in minutes

lNeed DC5V/1A power supply

YUV/YpbPr/YcbCr Input………….…Support up to capture 1080p,330M bandwidth,50/60Hz

HDMI resolution..24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i, same format as input

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max transmission bandwidth…….………………….……………………………………5.1Gbps

Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p

Output DDC signal ……………………………………………………………… 5Volts p-p (TTL)

Output cable distance…………………………..…….…...≤20m AWG26 HDMI standard cable

Max working current………………………………………………………………………...600mA

Power adapter format………..………Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H)     ……………………………….……………….…………90x70x33 (mm)

Weight…..……………………………………………….………..…….…………..……………155g
