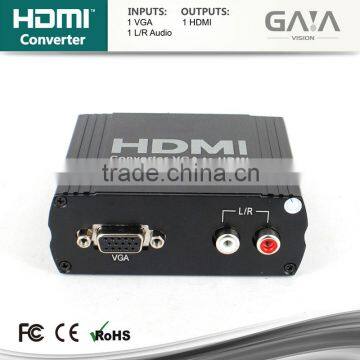

VGA Plus R/L Audio to HDMI Converter Adapter for HDTV 1080P

Our series of HDMI converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.

The HDCVGA0101 Converter use a single VGA+R/L source,accessing to single HDMI1.1sink. The Converter allows one VGA+R/L device to be converted easily to one HDMI1.1 monitor or projector.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES

l One VGA+R/L input signal convert to one HDMI sink devices

l Support video input : VGA analog

l Support audio input : R/L analog

l HDMI output : Support up to 1280x1024, same format as input

l Support CEC

l LED indication: when source or sink is working, LED relative to is light.

l Support output up to 20metres AWG26 cable length

l No loss of quality

l Installs in minutes

l Need DC5V/1A power supply

SPECIFICATIONS:                             HDCVGA0101

VGA Input…..……………………………………Support up to SXGA/SGA/UGA(50/60/75HZ)

Audio Input….…………………………………………………………………………..R/L Analog

HDMI resolution …………………………... Support up to 1280x1024, same format as input

Max transmission bandwidth…….………………….……………………………………5.1Gbps

Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p

Output DDC signal ……………………………………………………………… 5Volts p-p (TTL)

Output cable distance……………………………….…...≤20m AWG26 HDMI standard cable

Max working current………………………………………………………………………...600mA

Power adapter format………….……Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H)……………………………….…………….……………90x70x33(mm)

Weight…..………………………………………………………..………..……………………155g

Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-7 days according various quantities
3. OEM 10-12 days after receiving your sample confirmation and payment.

Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
