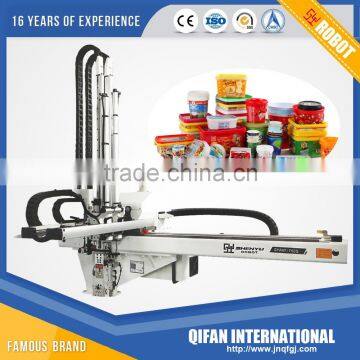

Robot arm single axis SYAM1-650S
- 500 Set / Sets per Month
- Qingdao / Beijing/ Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Vertical Travel(mm) | 650-700mm | |
| Horizonal Travel(mm) | 1200 | Application | Other, Pick and put | |
| Place of Origin | Shandong, China | Brand Name | SHENYU | |
| Model Number | SYAM1-650S | Power(W) | 750w | |
| Certification | CE,SGS | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SYAM1-650S hot sale robot arm single axis:
Features:
1)Traverse is mounted steel structure,high quality linear rail,driven by AC servo motor,high quality synchronous belt to move the axis at high speed and strength with precise positioning;
2)A single beam structure is configured for the crosswise part.It's principal body is comprised of high-quality profied aluminum alloy beam and high-quality linear guide,driven by high-quality cylinder and designed with special gas circuits.Therefore,it realizes lower speed outside the mold and high speed inside the mold;
3)Both main arm and auxiliary arm have a two-stage multi-speed mechanism.The principal body is comprised of high-quality profiled aluminum alloy beam,high quality linear guide,driven by high-quality cylinder and desigend with special gas circuits.Therefore,it realize lower speed outside the mold and high speed inside the mold.
Specifications:
Model | Unit | SYAM1-650S | SYAM1-750S | SYAM1-850S |
Type |
| Single stage | ||
Moulding machine size | ton | 50-180 | 100-250 | 200-300 |
Vertical stroke | mm | P:650 | P:750 | P:850 |
D:700 | D:800 | D:900 | ||
Crosswise stroke | mm | P:150 | P:150 | P:150 |
D:80 | D:80. | D:80 | ||
Traverse stroke | mm | 1200 | 1200 | 1200 |
Side angle pose | ° | 90 | ||
Max load(Includes gripper) | Kg | 5 | 5 | 5 |
Minimun take time | Sec | 4 | 4 | 4 |
Dry cycle time(withou gripper) | Sec | 14.5 | 14.5 | 14.5 |
Drive mode |
| Rampage - servo motor; Stubbs, arm - Pressure | ||
Working air preesure | Kgf/cm² | 6 | ||
Air consumption | NL/cycle | 19 | 20 | 22 |
Power consumption | KW | 0.75 | 0.75 | 0.75 |
Working voltage: |
| AC200±10%(50/60HZ) | ||
Machine size can be customized as your request.
Our factory:
| Model | H | LM | Y1 | Y | Y2 | Z | W | X1min | X1max | X2min | X2maxx |
| SYAM1-650 | 1300 | 1800 | 85 | 650 | 100 | 1200 | 155 | 220 | 700 | 100 | 450 |
| SYAM1-750 | 1400 | 1800 | 85 | 750 | 100 | 1200 | 1565 | 220 | 700 | 100 | 450 |
| SYAM1-850 | 1500 | 1800 | 85 | 850 | 100 | 1200 | 1565 | 220 | 700 | 100 | 450 |
To know more informaiton about our machine, please contact us directly:
