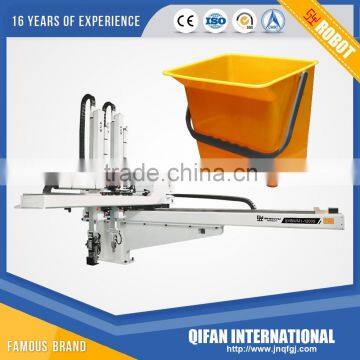

SYBWM1-1400S single axis servo motor robot

FOB Price

USD $3,000 - $8,000 / Set

2 Sets(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Qingdao / Beijing/ Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Vertical Travel(mm)	1400-1450mm
Horizonal Travel(mm)	2000mm	Application	Other, Pick and put
Place of Origin	Shandong, China	Brand Name	SHENYU
Model Number	SYBWM1-1400S	Power(W)	1300
Certification	CE,SGS	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

SYBWM1-1400S single axis servo motor robot:

Features:

1)Traverse is mounted steel structure,high quality linear rail,driven by AC servo motor,high quality synchronous belt to move the axis at high speed and strength with precise positioning;

2)Single beam structre on crosswise,high quality aluminum alloy material and linear rail on main body.Driven by AC servo motor,high quality gear wheel and rack to move the axis at high speed and strength,light weight,low noise anf with precise positioning;
3)Both main arm and auxiliary arm have a two-stage multi-speed mechanism.The principal body is comprised of high-quality profiled aluminum alloy beam,high-quality linear guide,driven by high-quality cylinder and designed with special gas circuits,Therefore,it realizes lower speed outside the mold ang high speed inside the mold;

4)The single axis servo sidling fulfills multi-point parking.The servomotor realizes crosswise moving ang position adjustment,facilitating the adjustment ang making the operations easy.Under PLC control,the robot features strong interference resistance and modularized design ang stores more than 20 modes.It is simple and easy to understand the manual bo`s interface.

Specifications:

Model	Unit	SYBWM1-1000S	SYBWM1-1200S	SYBWM1-1400S
Type		Telescopic type
Moulding machine size	ton	350-450	450-650	450-650
Vertical stroke	mm	P:1000	P:1200.	P:1400
Vertical stroke	mm	D:1050	D:1250	D:1450
Crosswise stroke	mm	P:415	P:415	P:415
Crosswise stroke	mm	D:240	D:240	D:240
Traverse stroke	mm	1600	1800	2000
Side angle pose	°	90
Max load(Includes gripper)	Kg	6	6	6
Minimun take time	Sec	1.5	1.6	1.6
Dry cycle time(withou gripper)	Sec	12	13	14
Drive mode		Rampage - servo motor; Stubbs, arm - Pressure
Working air preesure	Kgf/cm²	6
Air consumption	Nl/cycle	35	39	43
Power consumption	KW	1.3	1.3	1.3
Power		AC200±10%(50/60Hz)

Machine size can be customized.

Our factory:

Robot arm has been widely applied to household appliances, computer and peripherals products, photoelectric, cosmetic, automobile, clocks and watches, precision gear, PET bottle embryo, beach chair, audio-visual music, light guide, communication electronic, mobile phones, medical supplies, medicine packaging, food packaging, etc.
