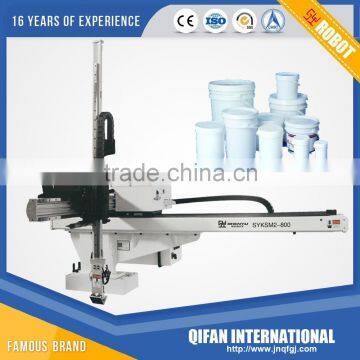

SYKSM2-900 Plastic application area two axis high speed robotic arm
- 500 Set / Sets per Month
- Qingdao / Beijing/ Shanghai
- T/T Credit Card PayPal
You May Like
-
SYCWM3-2000 Electronic robotics applications for plastic injection machine
-
SYT750(V) Small industrial mechanical automatic Robot Arm For Picking And Placing Product
-
Robot arm single axis SYAM1-650S
-
SYCWM3-1600 robot arm traverse
-
SYBWM1-800S machine picking and placing robot
-
SYBWM1-1400S robot arm traverse series
Product Details
| Condition | New | Vertical Travel(mm) | 900mm | |
| Horizonal Travel(mm) | 1500 | Application | Other, Pick and put | |
| Place of Origin | Shandong, China | Brand Name | SHENYU | |
| Model Number | SYKSM2-900 | Power(W) | 2000W | |
| Certification | CE,SGS | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SYKSM2-900 2 axis robotic arm:
Features:
1)Horizontal part of the steel frame structure,high quality linear guide,quality synchronous belt wheel,AC servo motor drive,meet the high rigidity,high speed,precise positioning control;
2)Single beam structure on crosswise,high quality aluminum alloy material and linear rail on main body.Driven by high-quality cylinder,advanced pneumatic system to move the axis at high speed;
3)The arms incorporate a telescopic mechanism for times speeds,high quality aluminum alloy,mater and linear rail main body.Driven by AC servo motor,high-quality timing belt pulleys positioningand low noise.
Specifications:
Model | Unit | SYKSM2-700 | SYKSM2-800 | SYKSM2-900 |
Type |
| Telescopic type | ||
Molding machine size | ton | 160-300 | ||
Vertical stroke | mm | 700 | 800. | 900 |
Crosswise stroke | mm | 250 | ||
Traverse stroke | mm | 1500 | 1500 | 1500 |
Side angle pose | ° | 90 | ||
Max load(Includes gripper) | Kg | 5 | 5 | 5 |
Minimum take time | Sec | 1.2 | 1.2 | 1.2 |
Dry cycle time(without gripper) | Sec | 4 | 4 | 4 |
Drive mode |
| Rampage, Arm - servo motor; Crossbeam Pressure | ||
Working air pressure | Kgf/cm² | 6 | ||
Air consumption | NL/cycle | 10 | 10 | 10 |
Power consumption | KW | 2 | 2 | 2 |
Working voltage: |
| AC200±10%(50/60HZ) | ||
Machine size can be customized as your request.
Our factory:
| Model | Z | Y | H | Xmin | Xmax |
| SYKSM2-700 | 1500 | 700 | 1600 | 160 | 730 |
| SYKSM2-800 | 1500 | 800 | 1700 | 160 | 730 |
| SYKSM2-900 | 1500 | 900 | 1800 | 160 | 730 |
