Military connectors

Place of Origin	Zhejiang, China		Brand Name	kaipu, kaipu
Model Number	Y50EX-1210		Application	PCB

Specifications

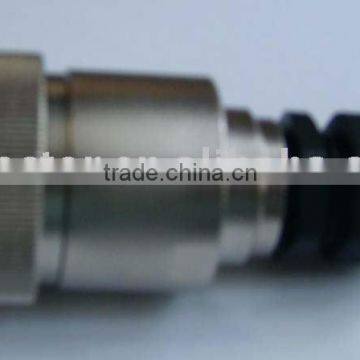

Military connectors are inner pin locked type for British system,military quality,featuring quick connection.Same as Y50EX.

Military connectors,MIL-26482 connectors are inner pin locked type for British system,military quality,featuring quick connection and separation,small volnme,light weight,good sealing and anti-tensile performance.The type of terminations include soldered and crimped,shielded and nonshielded housing,straight and bent cable outlet ends,ordinary,high vacuum and high pressure sealing.Its specification meet the requirements of GJB101A, GJB598A,MIL-C-26482G standard.They are widely used for energy and signal connections in strategic and tactical systems and field operations.

Product ordering

              Y50 E X-10 06 Z J  10

               1  2 3  4  5 6 7  8

     1.Product nameY50 series circular connectors

     2.Type       E:British system

     3.Structure:   X:ordinary rubber sealing

4.Shell    08,10,12,14,16,18,20,22,24

5.Contacts 3-61

6.Type  T:plug, Z:receptacle

     7.Contacts typeJ:pin,K:socket,S:panel

     8.Receptacle: 10:square flange mounting,10-2:with cable,11:circular flange,14­:screw connection

Plug1: grounded pressure,2: Cable clipper,4:anti-tensile shell,5angled,6:water proof cable shell

.Technical characteristics Mould:Tested as per provisions in 4.16 of GJB598A;Saline fog:Tested as per provisions in 4.17 of GJB598A;Rainproof:Tested as per provisions in 4.15 of GJB598A.

Temperature	Relative humidity	Atmosphere	Vibration	Impact	Shock	Endurance
-55°C~ +125°C	92~98% at40±2°C	101.33KPa~ 4.39Pa	10~2000Hz, 196m/s²	980.7 m/s²	392m/s²	500cycles

Air tightness: not greater than 6×10¯²PaL/S for ordinary, not greater than 1×10¯⁵PaL/S for glass sealed.

Contact diameter	Current	Voltage	Contact resistance
Ø0.8mm	3A	250V	≤6mΩ
Ø1mm	5A	250V	≤5mΩ
Ø1.6mm	10A	250V	≤3mΩ
Ø2.3mm	20A	250V	≤1.5mΩ
Ø3.6mm	50A	250V	≤1mΩ



Environment	Voltage proof	Insulation resistance
Normal	1500V	≥3000MΩ
High temperature	1000V	≥500MΩ
Moisture	500V	≥20MΩ

Radio frequency interference attenuation:

Frequency MHz	Attenuation db	Frequency MHz	Attenuation db
100	65	400	55
150	60	600	50
200	60	800	45
300	55	1000	45
