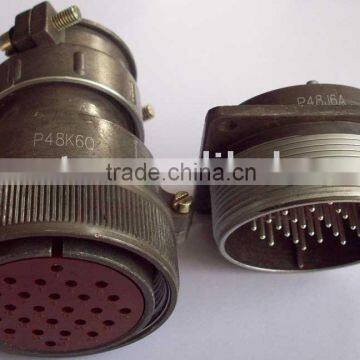

military connector P48
- sh
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | kp | |
| Model Number | P |
Product Description
Military connector P48 series are used extensively in line connections between electrical equipment,various instruments and meters.These connectors have the features of small volume,light weight,convenient application,high durability of plugging and unplugging,threaded coupling,good sealing performance,high conductivity and high dielectric strength.They are made according to the standard SJ/T10496.They are for military and industrial applications.Product Ordering
P 20 J 3 M P J
1 2 3 4 5 6 7
1. Name of series P series circular connectors
2. shell size: 20,28,32,40,48,55,60
3. Type of contactsJPin,KSocket
4. Sign of contacts: Numbers
5. Type:without markplug,Anormal receptacle,Msealed receptacle
6. Pshield shell,Qnormal shell,Rangled shield shell,Snormal angled shell,the receptacle without shell:without mark.
7.JAu plated,without J: Ag plated
Technical characteristics
Temperature | Relative humidity | Atmosphere | Vibration | Shock | Endurance |
-55°C~ +70°C | 92~96% at40+2°C | 100KPa~2 KPa | 10~200Hz,100m/s² | 250m/s² | 500 cycles |
The sealing connectors temperature allow -55°C~+55°C only.
Contacts diameter | Current | Voltage (pressure) | Contact resistance | |||
100Kpa | 8.5KPa | 4.4KPa | 2KPa | |||
Ø1.5mm | 10A | 500V | 250V | 175V | 150V | ≤2.5mΩ |
Ø2.5mm | 25A | ≤1mΩ | ||||
Ø3.5mm | 50A | ≤0.5mΩ | ||||
Ø5.5mm | 100A | ≤0.3mΩ | ||||
Environment | Voltage proof | Insulation resistance |
Normal | 1500V | ≥500MΩ |
Lower pressure(2KPa) | 300V | - |
Moisture | 1000V | ≥2MΩ |
