Product Details
| Place of Origin | Shandong, China | Brand Name | JT | |
| Model Number | JT856 |
Product Description

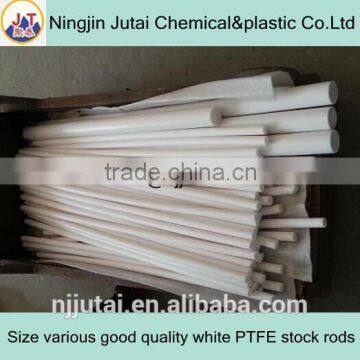

5-160mm diameter 1 meter length PTFE stock rods
Molded Teflon PTFE sheet
Material: 100% PTFE granular resin
Style: Molded PTFE Rod
Density: 2.1 ~ 2.3 g/cm3
Temp: -180 °C ~ + 260 °C
Products Description:
Molded teflon PTFE sheet is manufactured by technics of extruding and molding method in the diameter from 20 to 500mm with PTFE granular resin. As PTFE has a very low co-efficient of friction, so the surface of molded teflon PTFE rod has similar friction levels to ice. Molded teflon PTFE rod can work at -180 °C +260 °C and is the best electrical insulator of all known plastics.
Application:
Molded teflon PTFE sheet can be used as lining, seal components, wire isolation, slide block, gasket, seal, dielectric material, etc.
Technical Data:
Properties | unit | Result |
Apparent density | g/cm3 | 2.10-2.30 |
Tensile strength (min) | MPa | 15.0 |
Ultimate elongation (min) | % | 150 |
Working Temp | °C | -180 ~ 260 |
Melting point | °C | 327 |
Produce Max. Temp | °C | 385 |
Dia. | mm | 20mm ~ 400mm |
1.We can provide free small sample or receive small quanty sample order.
2.We can produce OEM productions or according to customer's drawing.
3. Warranty is at least 10 -50 years.
