Home > Products > PTFE sheet&rod > 40-300mm diameter PTFE stock rods
40-300mm diameter PTFE stock rods
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | JT | |
| Model Number | JT785 |
Product Description
Specifications
1.High capability of anti-abrasion2.Excellent impact

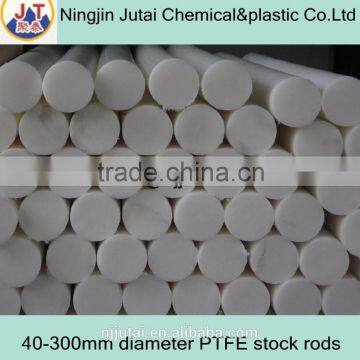

40-300mm diameter PTFE stock rods
Molded Teflon PTFE Rod
Material: 100% PTFE granular resin
Style: Molded PTFE Rod
Diameter: 20mm ~ 500mm
Length: 100mm ~ 3000mm
Density: 2.1 ~ 2.3 g/cm3
Temp: -180 °C ~ + 260 °C
Products Description:
Molded teflon PTFE rod is manufactured by technics of extruding and molding method in the diameter from 20 to 500mm with PTFE granular resin. As PTFE has a very low co-efficient of friction, so the surface of molded teflon PTFE rod has similar friction levels to ice. Molded teflon PTFE rod can work at -180 °C +260 °C and is the best electrical insulator of all known plastics.
Application:
Molded teflon PTFE rod can be used as lining, seal components, wire isolation, slide block, gasket, seal, dielectric material, etc.
Technical Data:
Properties | unit | Result |
Apparent density | g/cm3 | 2.10-2.30 |
Tensile strength (min) | MPa | 15.0 |
Ultimate elongation (min) | % | 150 |
Working Temp | °C | -180 ~ 260 |
Melting point | °C | 327 |
Produce Max. Temp | °C | 385 |
Dia. | mm | 20mm ~ 400mm |
Specifications:
Diameter(mm) | Length(mm) | ||
Norminal | Tolerance | Norminal | Tolerance |
20,25,30 | +1.130 | 100,1000,3000 | +3.60 |
35,40,45,50 | +1.600 | 100,1000,3000 | +3.60 |
55,60,65,70,75,80,85,90,100 | +2.000 | 100,1000,3000 | +2.50 |
110,120,130,140,150 | +2.500 | 100,1000,3000 | +2.50 |
180,200,250,270,300,500 | +3.000 | 300,1000,3000 | +2.00 |
Remarks:
We can also produce molded teflon PTFE rod in other diameter and length according to customer's requirements.
