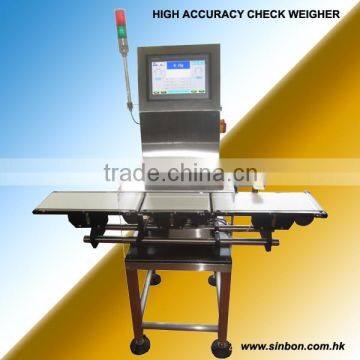

High Accuracy pharmaceutical Check Weigher

VIDEO (Click Video to watch machine's working video)

FEATURES

10" Color LCD touch screen display and easy to operate

High Speed, High Accuracy, High accuracy Load Cell to insure accuracy

250 Product preset and easy to edit and recall

Three-tier client login user rights manage Password Protect all the data

Weight List output via USB Port, offer standard RS232 port.

Automatic Set ZERO or Manual Set ZERO

PLC control system ensure stable system

Quick-locking and fixing make conveyor is easy to be assembled, checked and cleaned.

Stainless steel structure, easy to clean

RS485 and LAN connection port for option

APPLICATION

Widely used in food, pharmaceutical and consumable products industries for online weight check and quality control.

Used to in-motion weight check for all packed products

SPECIFICATION

Model No.: CW-01H

Weighing Range: 1-300g

Best Accuracy: ±0.05g

Max. Speed:250pcs/min. (Speed adjustable)

Infeed Conveyor Length: 300mm

Weighing Table Conveyor Length: 250mm

Rejector Conveyor Length: 300mm

Belt Width: 120mm

Rejector: Airjet

Collection Bin: Not Included

Conveyor Height: 750±50mm

Power Source: AC220V;50Hz; 0.5KW

Working Environment: 10℃~40℃; Relative Humidity: less than 95% (Non-condense)

Maximum Product Size: Length and Width less than 120mm
