OEM China Factory,YJ Series Cheap Small Electric Generator Motor With Starting Capacitor

Specifications

1)14 years manufacturing experience
2)Single phase electric motor,JY series
3)0.25-5.5KW,100% copper wire
4)Competitive price

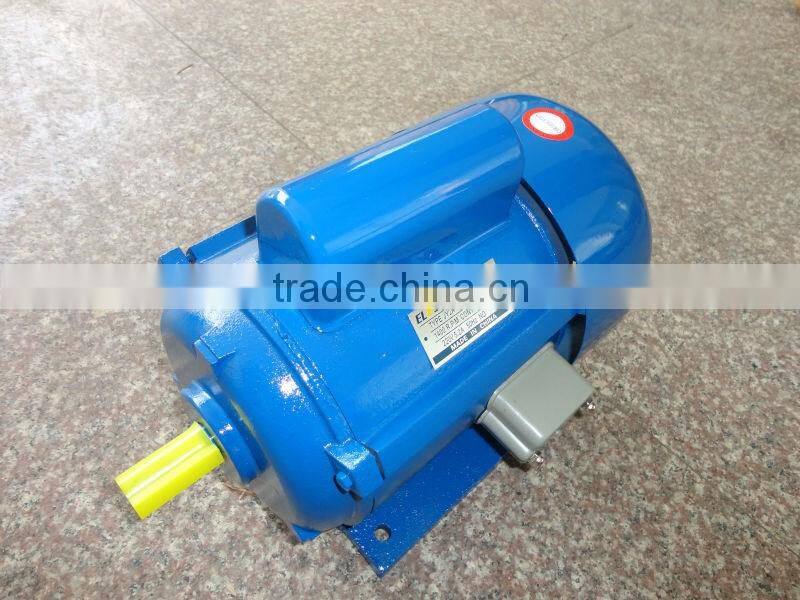

JY Single Phase Electric Motor

Brief Introduction

• The JY series heavy-duty single-phase motors are suitable for powering small type machine tools and water pumps,especially for family workshops where only single-phase current is available.Motors of this series are integrated with up-to-date design,built with the best quality materials and attractive appearance.They have outstanding performance,easy maintenance and are reliable.They completely conform to international I.E.C. standards.
• JY series protected motors are of IP44 or IP54 totally enclosed fan-cooling type.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.

1. Customized Production is available.

2. Supply for OEM and After Markets.

3. 100% tested for the quality prior to shipment

4. Certificate and Guarantee: ISO 9001:2008 / one year

5. package: carton&pallet

Detailed Product Description

1.CE certificate
2.Copper wire
3.Cold-rolled silicon steel sheet

Specifications
1) Frame sizes:  80-132
2) Rated power:  0.25-5.5kw
3) Rated voltage: 220~240V,100~110V or on your request

4) Frequency: 50Hz, 60Hz,50/60HZ
5) Protection class: IP44
6) Insulation class: B,F
7) Materials: cast iron, aluminum

8) EFF: EFF3, EFF2, EFF1
9) Poles: 2, 4, 6, 8
10) Cooling method: IC0141

11) Mounting types: B3/B5/B14/B15/B34/B35

12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -15°C < θ < 40°C
15) The altitude should be lower than 1,000m above the sea level
16) Special motors can be designed according to customers' requirements
