Electrico Single Phase 0.5 HP Electric Motor

YL Single Phase Electric Motor

Brief Introduction

The YL series capacitor asynchronous motors are single phase of capacitor start and capacitor run .Main features:small size high capacity,strong torque,high power factor and efficiency,safety and reliability in running,simple construction and easy maintenance,it possess frame No.and capacity as three phase asynchronous motors.This series motors is of totally enclosed fan-cooled structure ,YL series motor is suitable for machines and equipements such as full load start.

1. Customized Production is available.

2. Supply for OEM and After Markets.

3. 100% tested for the quality prior to shipment

4. Certificate and Guarantee: ISO 9001:2008 / one year

5. package: carton&pallet

Detailed Product Description

1.CE certificate
2.Copper wire
3.Cold-rolled silicon steel sheet

Specifications

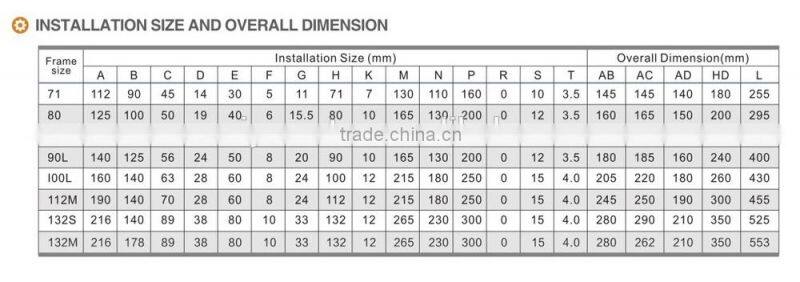

1) Frame sizes:  71-132
2) Rated power:  0.25-5.5kw
3) Rated voltage: 220~240V,100~110V or on your request

4) Frequency: 50Hz, 60Hz,50/60HZ
5) Protection class: IP44
6) Insulation class: B,F
7) Materials: cast iron, aluminum

8) EFF: EFF3, EFF2, EFF1
9) Poles: 2, 4, 6, 8
10) Cooling method: IC0141

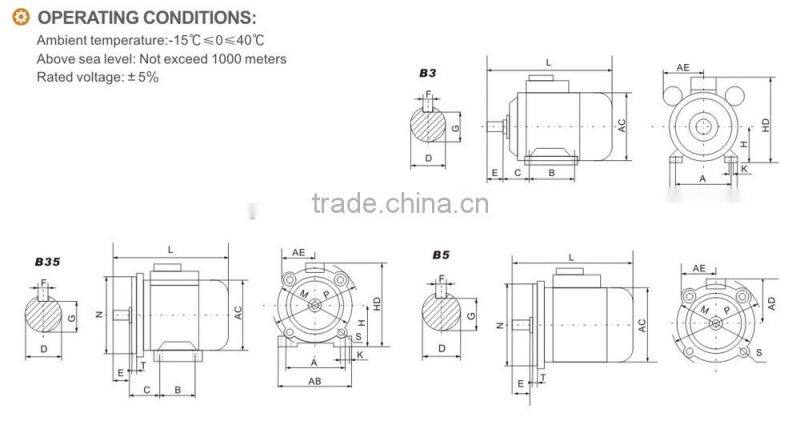

11) Mounting types: B3/B5/B14/B15/B34/B35

12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -15°C < θ < 40°C
15) The altitude should be lower than 1,000m above the sea level
16) Special motors can be designed according to customers' requirements

Company Overview

Working Shop

Testing Machines

Raw Materials

Loading Motors

Certificates

F A Q :

A:What is your MOQ of this item ?

B:20 pcs per item.

A:What is our lead time ?

B:25-30 days.

A:What is your payment?

B:T/T, L/C at sight, D/P at sight, Paypal,

A:Can we type our brand on it ?

B:Yes of course.

A:Where is your loading port ?

B:Ningbo port or Shanghai port.

A:What is your company's available production capacity ?

B:About 1000 PCS per day.
