Digital dc Panel Meter
Negotiable
/ Piece
100 Pieces(Min. Order)
- Ningbo Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Maxwel | |
| Model Number | DP | Display Type | Digital Only | |
| Measuring Range | 0-20A DC | Accuracy Class | 0.5% | |
| Operating Temperature | -10 to 50 | Dimensions | 96x96,72x72,48x48mm |
Product Description
Specifications
1. Digital dc panel meter2. Display: 3 1/2 didital LED display
3. Heat resistance
4. Voltage testing: over 2000V
Digital dc panel meter
Digital DC Ammeters
Function: Measure AC current
Display: 3 1/2 digital. LED display (red or green)
Accuracy: 0.5% ±1 digit
Auxiliary power: AC 110V ± 10% 50/60HZ or AC 220V± 10% 50/60HZ
Input signal: DC current
Measuring range: 0-20A DC, for the current over 20V can use the external shunt.
Consumption: <3.2VA
Max Signal Consumption: <0.3VA
Operating Environment: temperature -10~50°c humidity:≤85%
Storage Environment: temperature -30~60°c humidity:≤70%
Heat resistance: case of non-combustible plastic material
Voltage Testing: over 2000V
Fasterning: By means of nuts, absolutely safe, fast, robust, side-by -side

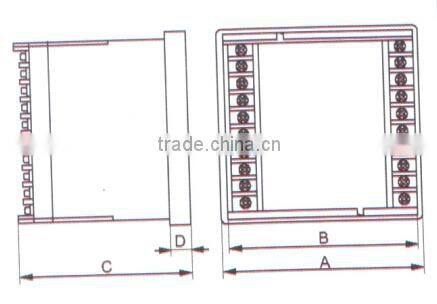

Size of rectangular type meter
| Model | Unit | A | B | C | D |
| DP-96 | mm | 96 | 92 | 75 | 10 |
| mm | 3.74 | 3.62 | 2.95 | 0.39 | |
| DP-72 | mm | 72 | 58 | 75 | 9 |
| mm | 2.83 | 2.68 | 2.95 | 0.35 | |
| DP-48 | mm | 48 | 44 | 110 | 8 |
| mm | 1.89 | 1.73 | 4.33 | 0.31 |
The item B for the size of panel cut-out of swithboard

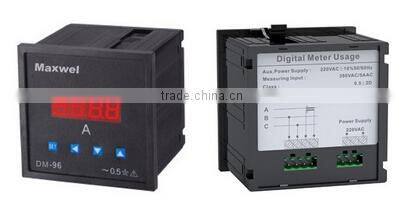

1.
| Digital meters ,AC | |
| Nominal Size | 96×96, 72×72, 48×48, 96×48, 72×36 |
| Accuracy | +-0.5% +-bytes |
| For through current | 0.1A 0.5A 1A 1.5A 2A 3A 4A 5A |
| For through voltage | 50V 100V 200V 300V 400V 500V 600V |
| Transformation ratio | 1- 9999A or 1- 9999KA |
| Transformation ratio | Adjustable |

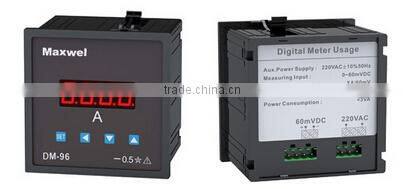

2.
| Digital meters ,DC | |
| Nominal Size | 96×96, 72×72, 48×48, 96×48, 72×36 |
| Accuracy | +-0.5% +-bytes |
| For through current | 0.1A 0.5A 1A 1.5A 2A 3A 4A 5A |
| For through voltage | 50V 100V 200V 300V 400V 500V 600V |
| Transformation ratio | 1- 9999A or 1- 9999KA |
| Transformation ratio | Adjustable |

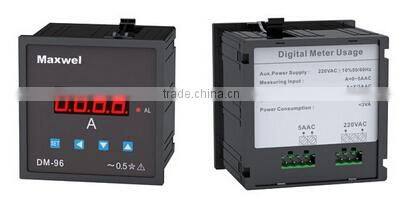

3.
| Digital ALARM AC meters | |
| Nominal Size | 96×96, 72×72, 48×48, 96×48, 72×36 |
| Accuracy | +-0.5% +-bytes |
| For through current | 0.1A 0.5A 1A 1.5A 2A 3A 4A 5A |
| For through voltage | 50V 100V 200V 300V 400V 500V 600V |
| Transformation ratio | 1- 9999A or 1- 9999KA |
| Transformation ratio | Adjustable |

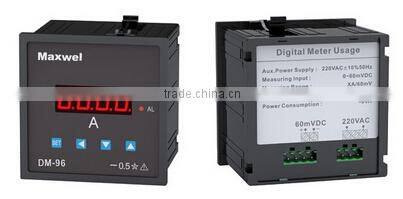

4.
| Digital ALARM DC meters | |
| Nominal Size | 96×96, 72×72, 48×48, 96×48, 72×36 |
| Accuracy | +-0.5% +-bytes |
| For through current | 0.1A 0.5A 1A 1.5A 2A 3A 4A 5A |
| For through voltage | 50V 100V 200V 300V 400V 500V 600V |
| Transformation ratio | 1- 9999A or 1- 9999KA |
| Transformation ratio | Adjustable |

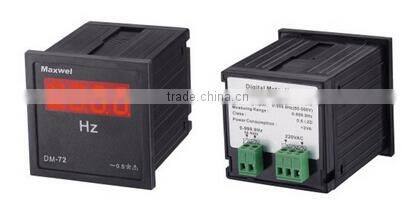

5.
| Digital FREQUENCY meters | |
| Nominal Size | 96×96, 72×72, 48×48, 96×48, 72×36 |
| Accuracy | +-0.2% +-bytes |
| Frequency range | 0 -999.9 Hz (50-500V) |
| Rated auxiliary power supply | AC 110, AC220V, AC380V, AC/DC48-250V (50/60Hz) |
| Performance | Stable |
| Package quantity | 1 |

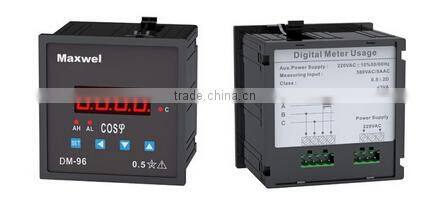

6.
| Digital POWER-FACTOR meters | |
| Nominal Size | 96×96, 72×72, 96×48 |
| Accuracy | +-0.5% +-bytes |
| Measuring range | 0- 360 degree angle |
| Input current (AC) | 0- 5A |
| Input voltage (AC) | 0-150V, 0-300V, 0-500V |
| Special features | Mono-phase/3 phase, frequency/phase position/power factor (Changeover between them) |
