L-101 Type Bus Bar
Negotiable
/ Piece
1000 Pieces(Min. Order)
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | MAXWEL | |
| Model Number | L type | Number of Contacts | 51 - 60 | |
| Conductor Size | 11 - 20 AWG | Type | Feed Through |
Product Description
Specifications
copper bus bar , bus bar1P,2P,3P,4P
Amazing Price
Excellent Quality

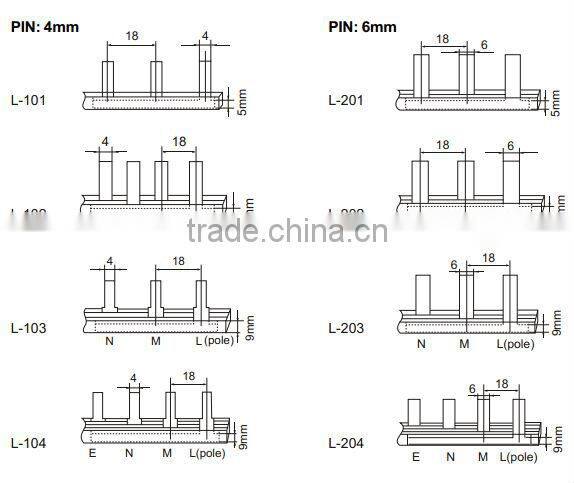

L type Bus Bar
Type: L-101, L-102, L-103, L-104,L-201,L202,L-203,L204
Phase: 1P,2P,3P,4P
No of Pins: 54, 56
Rated Current (A): 63-100, 63,50,40
Thickness&Height (mm): 1.5&9, 1.5&7, 1.4&7, 1.2&7
| Item No. | Phase | No. of Pins | Rated Current (A) | Thickness&Height (MM) |
| L-101 | 1 | 54 | 63-80 | 1.5&9 |
| L-102 | 2 | 54 | 63 | 1.5&7 |
| L-103 | 3 | 54 | 50 | 1.4&7 |
| L-104 | 4 | 56 | 40 | 1.2&7 |
| L-201 | 1 | 54 | 63-100 | 1.5&9 |
| L202 | 2 | 54 | 63 | 1.5&7 |
| L203 | 3 | 54 | 50 | 1.4&7 |
| L204 | 4 | 56 | 40 | 1.2&7 |
