Switchcraft 2 Piece Design Easy-Assembly Twist Metal 3 Pin 3 Pole Female XLR Connector Quality Choice
- shanghai port or ningbo port
- Credit Card
You May Like
-
Bulk Packing Premium RCA Plug Connector With Giant Body w
-
Bulk Packing Premium RCA Plug Connector With Nickel Plated Body w Spring
-
High End RCA RGB Male Plug and Female Jack Socket CYB RX Connector
-
CCTV RCA Male Plug Solderless Connector With Boot
-
RCA Male Compression Connector for RG59 Cable
-
Solder Type Plastic Strain Relief 1 / 4 Inch Stereo Male Plug 6.35mm Headphone Jack
Product Details
| Place of Origin | Jiangsu, China | Brand Name | AIO | |
| Model Number | AIO-P031 | Type | Other, XLR, Audio & Video | |
| Application | Other, Audio & Video | Gender | Male |
Product Description

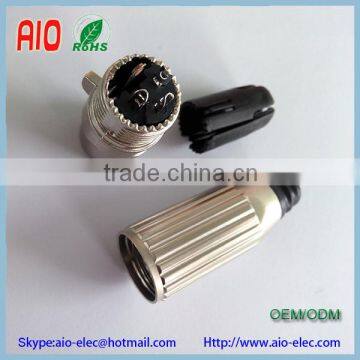

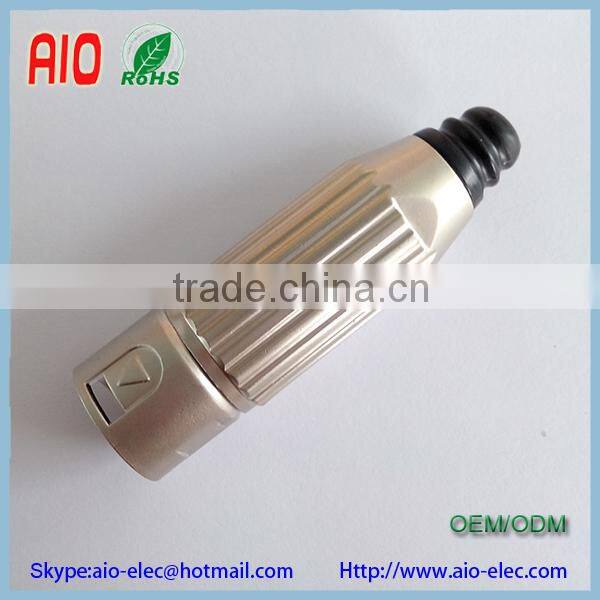

Are you using cable XLRs comprising of maybe four component parts to assemble (and lose!)? These TWO piece XLRs have revolutionised the installation market. Tests have shown that the time taken to assemble these XLRs can be reduced by as much as 60% when compared to other brands. The metal handle versions are particularly robust as well as being aesthetically pleasing and, combined with the very attractive price tag, make for an unbeatable solution.
Specification:
- Only two pieces to assemble
- Easy twist on handle reduces assembly time
- Rugged die-cast metal handle
- Strain relief accommodates wide cable OD ranges
- Black finish available
- Gold-plated pins/contacts available
- Lower cost plastic handle version available
| Features and Benefits | Only two pieces to assemble |
|---|---|
| Easy twist on handle reduces assembly time | |
| Rugged die-cast metal handle | |
| Accepts cable OD's (.100" – .285") | |
| Black finish available | |
| Gold-plated pins/contacts available | |
| 3 Pin & 5 pin available | |
| Applications | Audio |
| Medical | |
| Instrumentation | |
| Process Controls | |
| Specifications Electrical | Contact Resistance: 50 milliohm maximum, per pole. |
| Current Rating @ 125VAC | |
| 3 pole – 15A | |
| 4 pole –10A | |
| 5 & 6 pole – 7.5A | |
| 7 pole – 5A | |
| Insulation Resistance: 1,000 MW, minimum. | |
| Dielectric Withstanding Voltage: 1,000 V (rms) | |
| Capacitance: ≤3 pF between pins and ≤6 pF | |
| between pins and shell, maximum | |
| Material | Shell: Die-Cast zinc with nickel finish or black chrome. |
| Handle: Die cast with nickel finish or black chrome. Also black thermoplastic handle available. | |
| Ring: TPR (Thermoplastic rubber). | |
| Insert Insulation: Molded thermoplastic. | |
| Socket Contacts: Silver plated copper alloy tarnish resistant; bifurcated on 3 and 4 contact types. | |
| Gold is available. | |
| Pin Contacts: Silver plated copper alloy. Resists tarnishing, and provides excellent electrical | |
| conductivity. Gold is available. | |
| Latch lock: High strength die cast zinc. | |
| Strain Relief: TPR | |
| Flex Relief: TPR (Thermoplastic rubber) |
