4 Pin Din Female Solder Panel Mount Connector for Medical Equipment

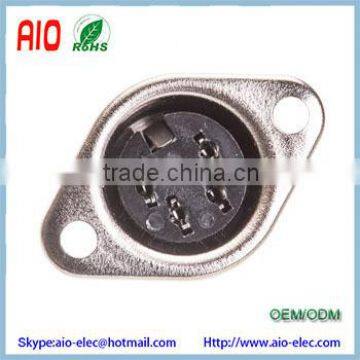

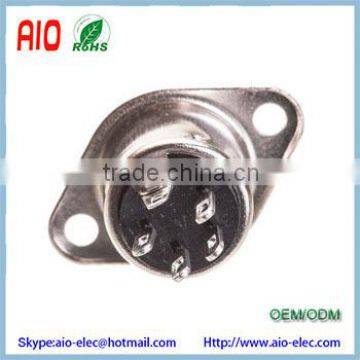

The 4 Pin DIN Female Solder Panel Mount Connector is an economic and lightweight panel mount style connector. The 4 Pin DIN Female Connector accepts up to 20 AWG wire. The solder cups are easy to work with and the eyes are easy to thread.

Features:

• 4 Pin DIN Female
• Metal
• Lead Type: Solder Cups
• Flush Mounting Style
• Mounting Hole Size: 19/32"
• Accepts 20 AWG Wire

Q: What is the configuration for 4 pin din connectors?

A: See image below.

Q: What are 4 Pin DIN Connectors commonly used for?

A: The 4 Pin DIN Connector is commonly used to add extra power to the mother board for audio applications.

Q: What cables are used with DIN Connectors?

A: Din connectors are commonly used with multi-conductor cables with at least one conductor per pin on the connector.

Q: How do I attach a DIN connector to my cable?

A: In order to attach a DIN connector to a cable you must solder each pin to its respective conductor.

Q: How do I prevent melting the plastic in the connector during soldering?

A: When soldering a DIN connector avoid heating the untinned wire and connector point and applying the solder all at once. This will cause melting and frustration. Tinning the wire ends and allowing them to cool before you tin the connector will prevent melting and allow you to attatch the wire correctly.
