GAVR8A AVR Generator Parts and Accessories
US$ 14 - 18
/ Piece
5 Pieces(Min. Order)
- Fuzhou/Shenzhen/Xiamen
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Parbeau | |
| Model Number | GAVR8A |
Product Description
Specifications
GAVR8A AVR Generator Part1.10 Years Factory
2.Monthly sale qty arround 6000pcs
3.spare parts avialable

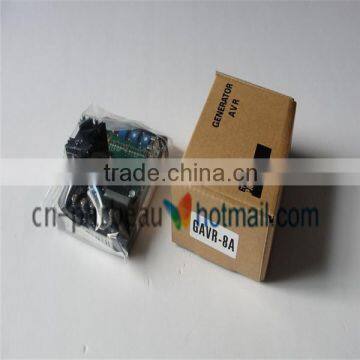

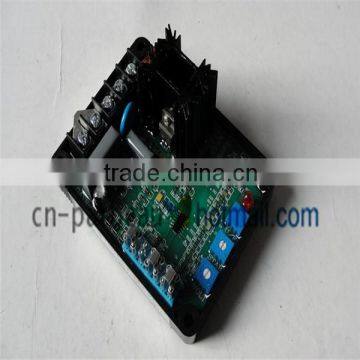

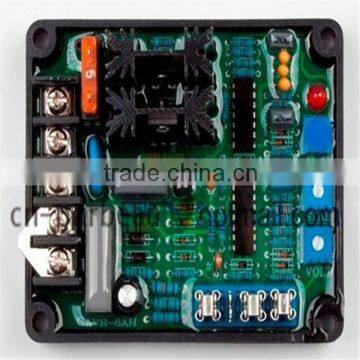

GAVR8A AVR Generator Parts and Accessories
Gavr-8A is universal 8Amp 1/2 Wave Self Excited Dip-Switch Progmmable avr for ,50kw brushless generator
Features
- Voltage Regulation < ±1%
- 220/440VAC Programmable Input
- Rugged Compact Desigh
- Soft Start Voltage Ramping
- With Under Frequency Roll Off Protection
- EMI Suppression
- Built-in High Capacity 8Amp Fuse
| Sensing input Voltage | 110/220/400VAC , 1 phase 2 wire |
| Power Input voltage | 100-260VAC , 1 phase 2 wire |
| Output voltage | max 90 VDC at 240VAC input |
| Current | Continuous 3 A , intermittent 5A for 10secs |
| Resistance | Min.15 ohm , Max 100ohm |
| Voltage Build-up | residual voltage at avr terminal >5VAC |
| Voltage Regulation | <±1% with 4% engine governing |
| Operating Temperature | (-40°C to +60°C |
| Storage Temperatue | (-65°C to +85°C |
| External Volts Adjutment | ±7% with 1k ohm 1 watt trimmer |
| EMI Suppression | avr Internal electromagnetic interference filtering |
| Unit Power Dissipation | Max.8 watt |
| Under Frequency Protection | 60Hz system presets knee point at 55Hz |
| 50Hz system presets knee point at 45Hz | |
| Dimentions | 107mmL*82mmW*50mmH |

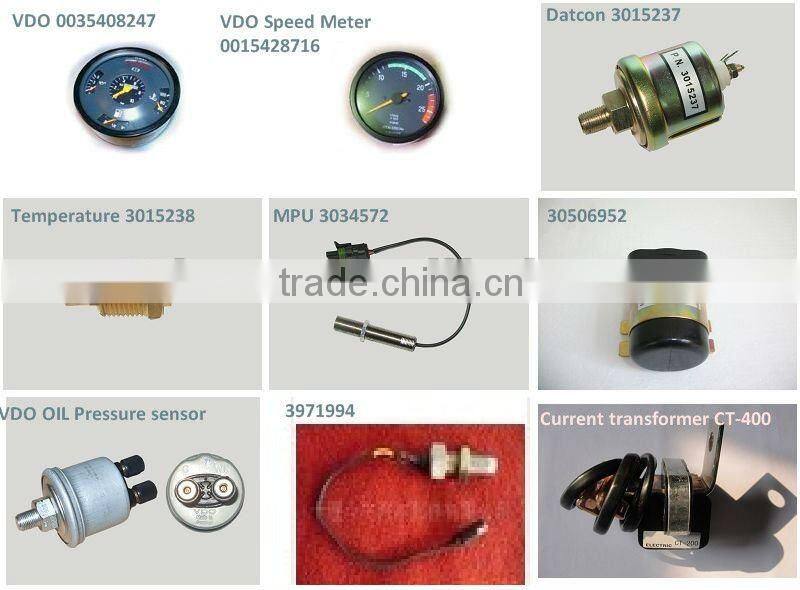

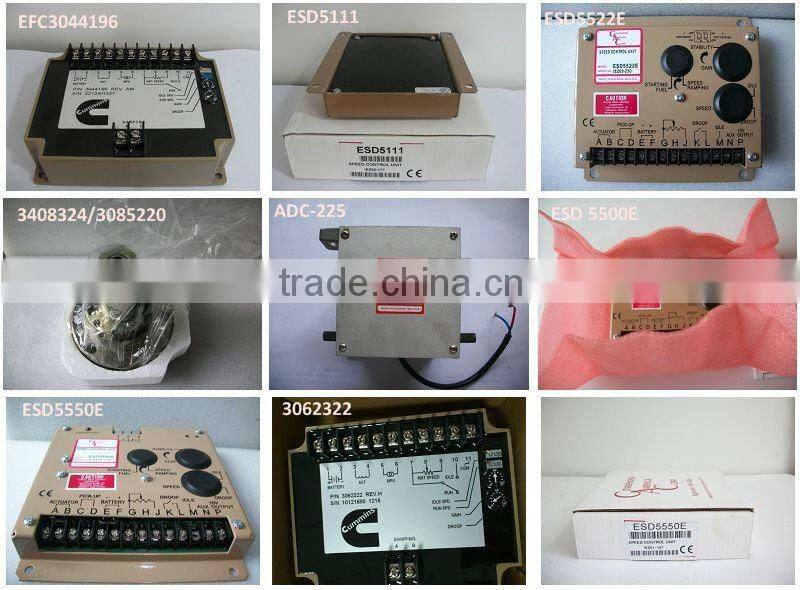

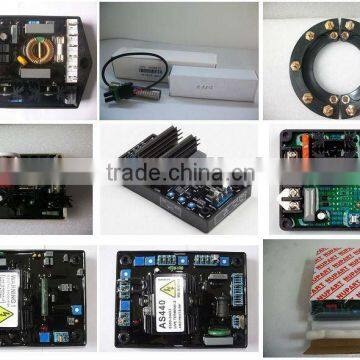

More Generator parts Pictures
Parbeau is 8 year manufacturer of Generator Parts & Accessories ,especially specilized in generator avr.
