Factory Sales Brushless Diesel Generator Parts GAVR-12A

FOB Price

US$ 11 - 13 / Piece

5 Pieces(Min. Order)

Port Fuzhou/Shenzhen/Xiamen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	Parbeau
Model Number	GAVR12A

Product Description

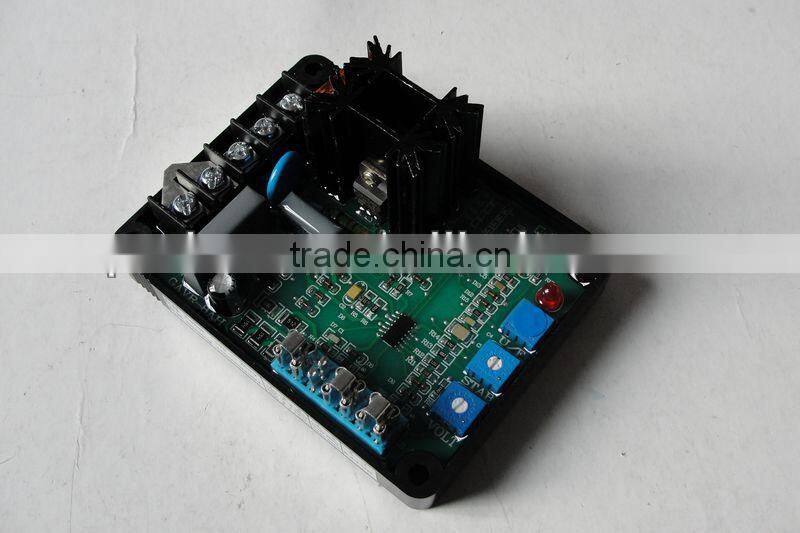

Brushless Diesel Generator Parts AVR GAVR-12A

Universal 7Amp 1/2 Wave Self Excited Dip-Switch Progmmable avr

FEATURES:

Voltage Regulation < ±1%

220/440VAC Programmable Input

Rugged Compact Desigh

Soft Start Voltage Ramping

With Under Frequency Roll Off Protection

EMI Suppression

Built-in High Capacity 10Amp Fuse

SPECIFICATIONS FOR GAVR-12A
Sensing input Voltage	110/220/400VAC , 1 phase 2 wire
Power Input voltage	100-260VAC , 1 phase 2 wire
Output voltage	max 90 VDC at 240VAC input
Current	Continuous 3 A , intermittent 5A for 10secs
Resistance	Min.15 ohm , Max 100ohm
Voltage Build-up	residual voltage at avr terminal >5VAC
Voltage Regulation	<±1% with 4% engine governing
Operating Temperature	(-40°C to +60°C
Storage Temperatue	(-65°C to +85°C
External Volts Adjutment	±7% with 1k ohm 1 watt trimmer
EMI Suppression	Internal electromagnetic interference filtering
Unit Power Dissipation	Max.8 watt
Under Frequency Protection	60Hz system presets knee point at 55Hz
	50Hz system presets knee point at 45Hz
Dimensions	107mmL82mmW50mmH

Factory & Advantage

How long factory we are?

Since year 2003

Parbeau is a factory produce generator avr ,engine governor,genset controller.Our main market is in eastern Asia and Middle east country.

We begin our International business from year 2010 .

Have attended Canton Fair 115th.

Our Advantages

1) Parbeau set up on year 2003,Deal with 80% local market,supply 3000 pcs /Month

2) First AVR Factory in Fuan ,Nearly 10 Years Factory

3) Imported parts from Foreign &Nation Owned Company

4) Quality Control: Each product test 3tims before put in Package

Warranty & Service

Pre-Sales Service

* 12 Hours Online service support
* Sample service (Charged)
* OEM Service support

After-Sales Service

* Training how to instal the machine, training how to use the product.
* Supply 2years broken products exchange

Quality control

Packing & Delivery

Packaging
Size	50(L) * 35(W) * 40(mm)
Weight	18KGS/carton ,≈20PCS
Packaging Details	The normal package is Carton box with PE cover on it.When there is a big deal ,here will use the plywood pallet ,dont need any special fumigation. Each Dimention:100*100mm This Dont need any special fumigation certificate.Or we will arrange packing according to customers special request.
