SIGO 3816 best quality hot sale automatic laminating machine Quality Choice
- 100 Piece / Pieces per Month
- Ningbo Port/Shanghai Port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Textiles | |
| Packaging Type | Film, Other, Film, Bookcover, Picuter, Photo,etc | Packaging Material | Paper, Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 110V/220V | Power | 1.3KW | |
| Place of Origin | Zhejiang, China | Brand Name | SIGO | |
| Model Number | SG-3816 Laminator | Dimension(L*W*H) | 73*71*57cm | |
| Weight | 72KG | Certification | CE Certification | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

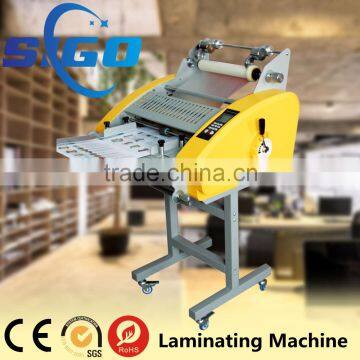

SIGO 3816 best quality hot sale automatic laminating machine
If you want to see similar products, Please click the model number. thanks
SG-350R/ 480R SG-380 V370 SG-480 SG-650
SG-358 SG-3811 SG-3816 SG-6512 SG-1100S
Hot and Cold Automatic Roll Laminating Machine Detail Spec:
Product Introduction
Heated roll laminator uses heated rollers to melt glue extruded onto lamination film. This film is in turn applied to a substrate such as paper or card using pressure rollers. The primary purpose of laminating with such a machine is to embellish or protect printed documents or images. Heated roll laminators can vary in size from office based pouch laminators to industrial sized machines. Such industrial machines are primarily used for high quantity/quality output by printers or print finishers.
Whether small office or industrial machines their primary function is to embellish or protect printed works. Such laminators are used to apply varying thicknesses of lamination film onto substrates such as paper or fabrics. The main advantage to the use of heated roll laminators is that of speed. Heated laminators use heated rollers or heated shoes to melt the glue which is applied to lamination film. The process of heating the glue prior to applying the film to a substrate allows for a faster application of the film. The laminates and adhesives used are generally cheaper to manufacture than cold roll laminates, often as much as half the cost depending on the comparison made. As the materials are non-adhesive until exposed to heat, they are much easier to handle. The glue is solid at room temperature, so lamination of this type is less likely to shift or warp after its application than pressure activated laminates, which rely on a highly viscous, adhesive fluid.
Max. lamination width: | 380mm |
Max. lamination speed: | 600-3000mm/min |
Max. lamination temperature: | 180C |
Max. clearance between top bottom rollers: | 6mm |
Recommended film: | 25-250mic |
The maximum diameter of roll film | 200mm |
Warm up time | about 10 minute |
Speed control | manual |
Auto removing film rewinding paper | NO |
Single-sided laminating function | YES |
Double-sided laminating function | YES |
With a perforating blade | YES |
Auto paper feeding | YES |
Voltage: | 220V/50HZ/1300w |
Display: | LCD |
Heating roller dia: | 55 |
Pull roller dia: | 40 |
Temperature control: | IR |
Diameter of the core: | 1,1.5,3 inch |
Net weight: | 57KG |
Gross weight: | 72KG |
Machine size(L*W*H) | 650*850*510mm |
Dimension(L*W*H) | 730*710*570mm |
A3 A4 A5 A6 Size 380mm Automatic Roller Laminator Package & Shipping to Ningbo Port
