Full HD 1080P High Resolution Camera, 2.0 Mp 27X Zoom Sony Sensor TVI Ptz Camera, IR 120M High Speed Dome Camera
- Shenzhen
You May Like
-
Full HD 960P High Resolution Camera, 1.3 Mp 27X Zoom Sony Sensor TVI Ptz Camera, IR 120M High Speed Dome Camera
-
Full HD 1080P Sony CMOS TVI 2MP Varifocal Outside Adjust Lens Lens IR Bullet CCTV Camera
-
1.3MP TVI Color IR Dome CCTV Camera With Progressive Scan CMOS Sensor, Easy Installation, HD Video and OSD Menu Control Over c
-
Metal Housing Full HD 1080P Resolution Sony CMOS Sensor 2.0MP TVI Color IR Dome Cctv Camera
-
2MP Full HD TVI Camera 1080P Sony CMOS Color IR Dome CCTV Camera Quality Choice
-
2.0MP Full HD 1080P TVI Sony CMOS Sensor Color IR Dome CCTV Camera With Fisheyes 360 Degress 2.1mm Lens Support IP66
Product Details
| Place of Origin | Guangdong, China | Brand Name | AST | |
| Model Number | ASHT692-027-20 | Type | Other, TVI camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description

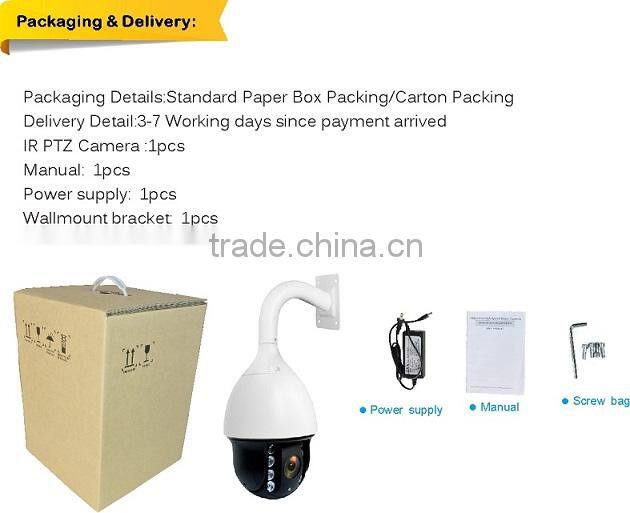

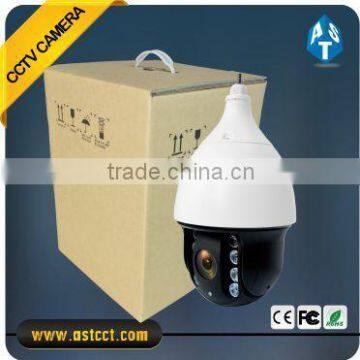

Delivery Detail: 3-7 Working days since payment arrived
Dome camera :1pcs
Manual:1pcs
Screw bag:1 pcs

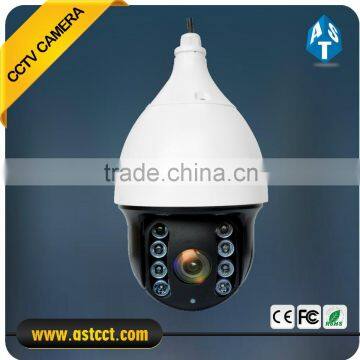

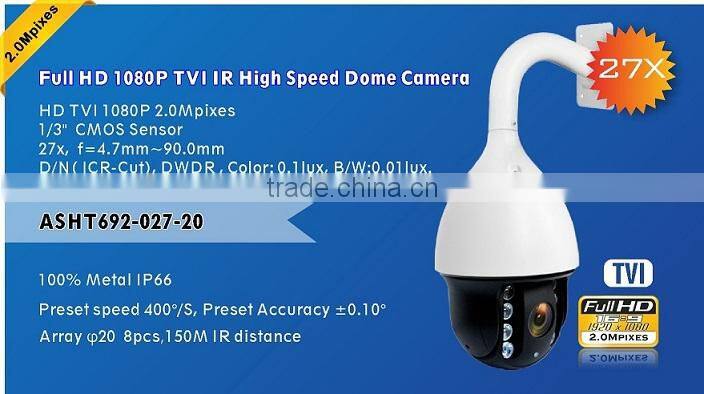

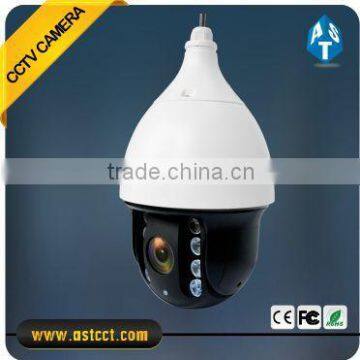

Full HD 1080P high resolution camera, 2.0 Mp 27X Zoom Sony Sensor TVI ptz camera, IR 120M High Speed Dome Camera
Camera:
HD TVI 1080P 2.0Mpixes
1/3" CMOS Sensor, 27x, f=4.7mm~90.0mm, D/N( ICR-Cut), DWDR , Color: 0.1lux, B/W:0.01lux.
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR range 120M
4. Highest ESD protection against lightning and power surges.
5. With digital temperature controlling system protecting IR LED
6. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.
7. HD-TVI output
8. 8 tours, DC12V
| Mode | Name and Description | ASHT692-027-20 HD TVI IR High Speed Dome Camera |
| ASHT692-027-20 Outdoor | ||
| Camera | Camera Name | AS-AT027 (27X D/N)) |
| Image Sensor | 1/3" CMOS Sony 322 | |
| Effective Pixels | 2.0 Mpixes | |
| Horizontal Resolution | 1080P | |
| Min. Illumination | 0.1Lux :Color/0.01 Lux:B/W | |
| Zoom | 27X, f=4.7mm~90.0mm F1.6(W)~2.7(T) | |
| Day/Night | AUTO/COLOR/BW | |
| SNR | ≥50dB(AGC OFF) | |
| WDR | DWDR | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| Electronic shutter | 1/30s~1/10,000s | |
| Dome Features | CPU Type | 32 bit ARM CPU |
| Luminary | Array Φ20 8pcs | |
| Night vision distance | 120M | |
| Lamp control | Auto, Manual, by Zoom | |
| Address | 0~255(soft address and hard address) | |
| Pan Range | 360° continued rotation | |
| Tilt Range | 0~90°(Auto Flip) | |
| Manual pan speed | 0~240º/S | |
| Manual tilt speed | 0~120°/S | |
| Preset speed | 400°/S | |
| Actual preset Accuracy | ±0.10° | |
| Preset points | 255 | |
| Operation OSD language | Chinese /English | |
| OSD Display | dome menu & camera menu adjustment | |
| Home position | Return to preset/scan/pattern/ if there is no command in the specified period. | |
| Operation recall | recall operation zone | |
| Tour | 8 | |
| Communication Protocol | HD-TVI | |
| Intelligent Three dimensional Scan | Auto Pan & Tilt &Zoom /Manual | |
| Pattern group | 8 Programmable(Pan/Tilt/Zoom ) | |
| Speed adaption | Speed slows down automatically when zoom in | |
| Intelligent power off real time memory | automatic save functions setting ,automatic wake up tour function | |
| Camera Menu operation | support the operation of camera set up | |
| Manual continued Auto Scan | Non-limited position of manual continued Auto scan | |
| General | Work temperature | External–35℃~55℃ |
| Work Humidity | 0%~90% (Non condensing) | |
| Power | DC12V±10%; 4A | |
| Consumption | 50W | |
| Communication | RS-485 | |
| Video Output | HD-TVI | |
| Connection | BNC |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
